Guangzhou Winson Information Technology Co., Ltd.
$49.92-49 Others
$45.950-499 Others
$34.9≥500Others
| Tipo di pagamento: | L/C,T/T,D/P,D/A,Paypal,Others |
| Incoterm: | FOB,CIF,EXW,DDP |
| Trasporti: | Ocean,Land,Air,Express,Others |
| Porta: | guangzhou |
Modello: WDI-2011
marchio: Winson
Certificazione: ce
Stato Del Prodotto: Azione
Tipi Di: Scanner di codici a barre
Tipo Di Elemento Di Scansione: CCD, CMOS
Punto Di Colore: 32 bit
Tipo Di Interfaccia: USB
Luogo D'origine: Cina
Periodo Di Garanzia (anni): 1 anno
Assistenza Post-vendita: Call Center e supporto tecnico in linea
Products Status: Stock
Type: 2D Barcode Reader Module
Scan Element Type: 2D
Colour Depth: 32 Bit
Interface Type: usb, TTL-232/USB
Max Paper Size: N/A
Optical Resolution: 1280X800 pixels
Scan Speed: 60fps
Brand Name: Winson
Place Of Origin: Guangdong, China
Warranty(Year): 1-Year
After-sales Service: Return and Replacement, Call Center and on-line Technical Support
Nome prodotto: 2D Barcode Reader Module
Product Type: QR Bar Code Scan Engine
Interface: TTL-232/USB
Photo Sensor: COMS array sensor
Connector: 0.5-12P FPC
Min Resolution: 1D:4mil(0.101mm) 2D:7mil(0.178mm)
Aim Light Source: Red LED
Field Of View: 54°(H),33°(V)
Lingua: Multiple languages
Sertifikasi: Ce, Rohs
| Unità vendibili | : | unit |
| Tipo pacchetto | : | Imballaggio personalizzato (negoziato) |
The file is encrypted. Please fill in the following information to continue accessing it

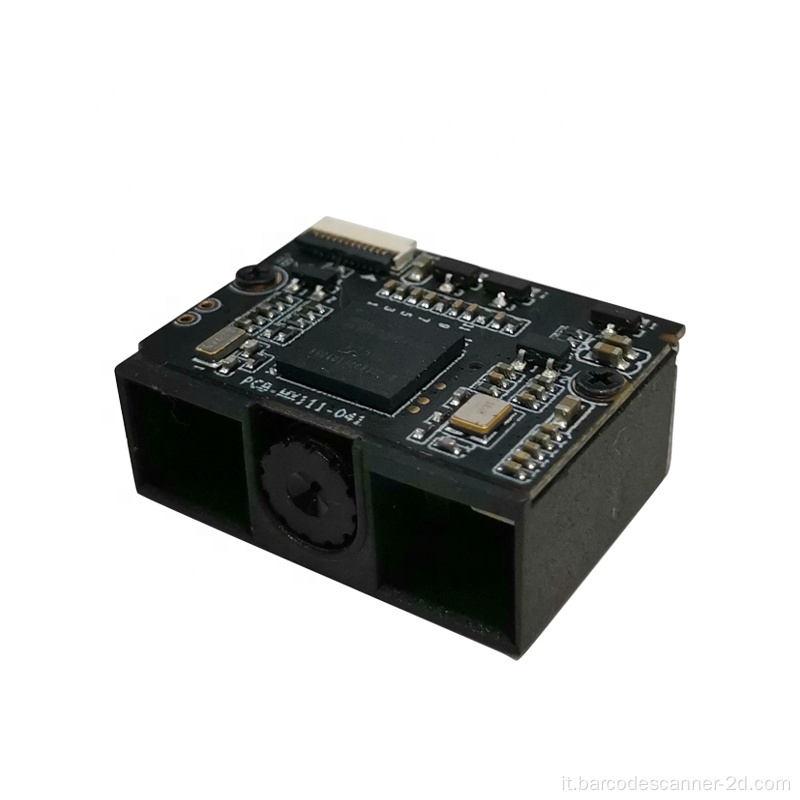

Winson 2D Barcode Scanner Engine WDI-2011 CCD CODE SCANNER LETTORE CODICE PER VENDI
Supportare il modulo scanner QR QR RS232, USB, TTL, Micro USB Interface QR .
Batteria da 2600 mAh incorporata, lettore di codici a barre industriale in standby super lungo.
|
Better scanning performance 32-bit CPU, scanning code speed up to 60FPS per second.
Support bidirectional scanning Accurate scanning, the error rate is 1 / 5,000,000. |
|
|
|
|
|
|
Compatibility
Compatible with the current system used by the general public, such as Windows,Android, Mac OS,IOS,Linux,and so on.
|
Mechanical Shock After 1.0m drop onto concrete surface, still work as usual,shockproof and Anti-broken. |
|
Technical parameters |
||
|
Electrical Characteristics |
||
|

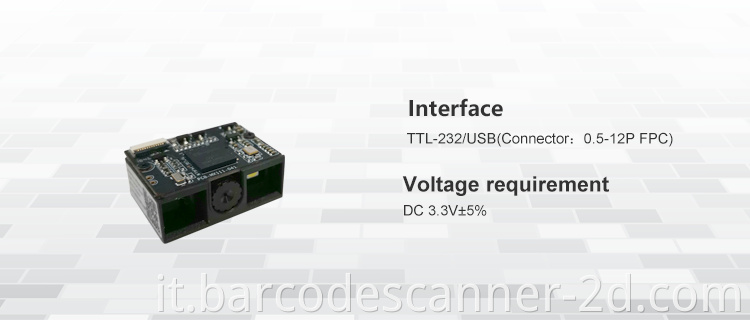

Interface |
TTL-232/USB |
|
|
Interface connector |
0.5-12P FPC |
|
|
Voltage requirement |
DC 3.3V±5% |
|
|
Current consumption |
Max:250mA |
|
|
Optical Characteristics |
||
|
Photo sensor |
CMOS array sensor |
|
|
SENSOR RESOLUTION |
1280X800pixels |
|
|
light source |
white LED*1 |
|
|
Aim light source |
Red Bar LED |
|
|
Performance Characteristics |
||
|
Decode angle |
Pitch angle:±65° Skew angle:±60° Tilt angle:±180° |
|
|
Min resolution |
1D:4mil(0.101mm) 2D:7mil(0.178mm) |
|
|
Min.PCS value |
>20%UPC/EAN 13(13mil) |
|
|
Field of View |
54°(H),33°(V) |
|
|
Language |
multipl languages |
|
