Guangzhou Winson Information Technology Co., Ltd.
$32.52-49 Others
$28.550-199 Others
$20.5≥200Others
| Tipo di pagamento: | L/C,T/T,D/P,D/A,Paypal,Others |
| Incoterm: | FOB,CFR,CIF,EXW,DDP |
| Trasporti: | Ocean,Land,Air,Express,Others |
| Porta: | guangzhou |
Modello: WGC-300-USB
marchio: Wionson
Certificazione: ce
Stato Del Prodotto: Azione
Tipi Di: Scanner di codici a barre
Tipo Di Elemento Di Scansione: CCD, CMOS
Punto Di Colore: 32 bit
Tipo Di Interfaccia: USB
Luogo D'origine: Cina
Periodo Di Garanzia (anni): 1 anno
Assistenza Post-vendita: Call Center e supporto tecnico in linea
Private Mold: Yes
Products Status: Stock
Type: Scanner Module
Scan Element Type: Ccd
Colour Depth: 32 Bit
Interface Type: usb, SCSI, IEEE 1394, COM, PS/2, Other
Max Paper Size: N/A
Optical Resolution: 5mil
Scan Speed: 300 Scans/Sec
Brand Name: Winson
Place Of Origin: Guangdong, China
Warranty(Year): 1-Year
After-sales Service: Call Center And On-Line Technical Support
Color: Black

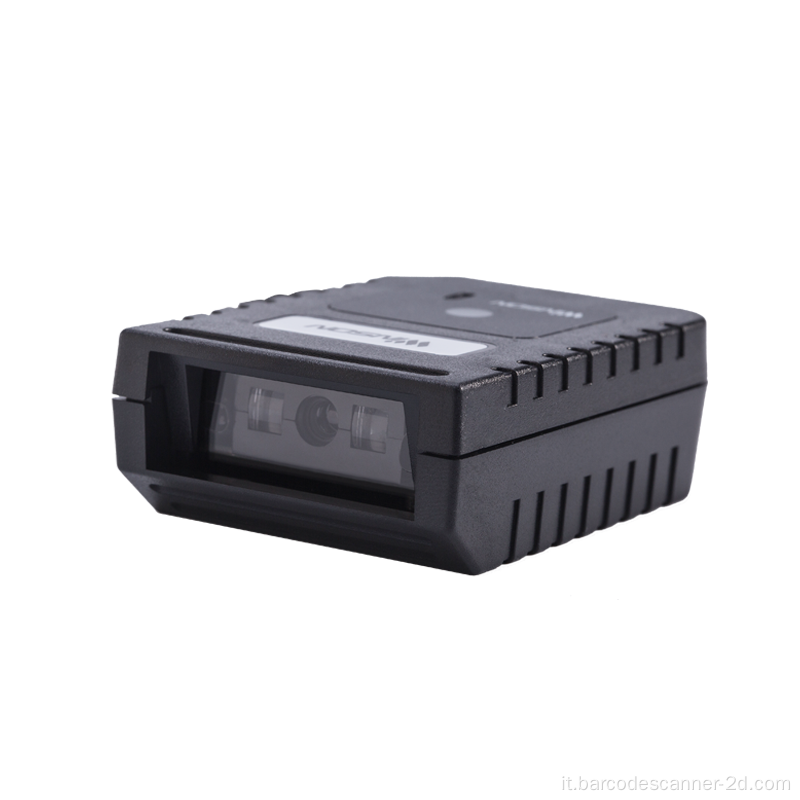

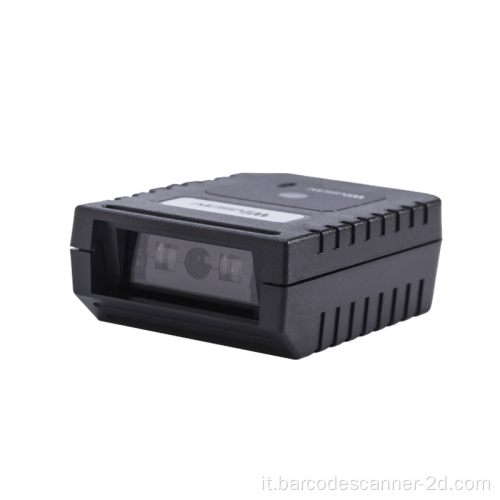

Nome prodotto: WGC-300 CCD Scanner Module
Interface: USB HID KEYBOARD/USB VCP/RS-232
Voltage Requirement: DC 5V±10%
Current Consumption: Max:118mA
Photo Sensor: CCD linear sensor
Decode Angle: Pitch angle:±30° Skew angle:±70° Tilt angle:±40°
Min X Dimension: 0.127mm/5mil(PCS 0.9)
Print Contrast: >25%UPC/EAN 13(13mil)
Dimension: 30mm*26mm*12mm(L*W*H)
Sertifikasi: Ce
| Unità vendibili | : | unit |
| Tipo pacchetto | : | Imballaggio personalizzato (negoziato) |
The file is encrypted. Please fill in the following information to continue accessing it
|
Technical Specifications
|
|
|
|
Electrical Characteristics
|
|
|
|

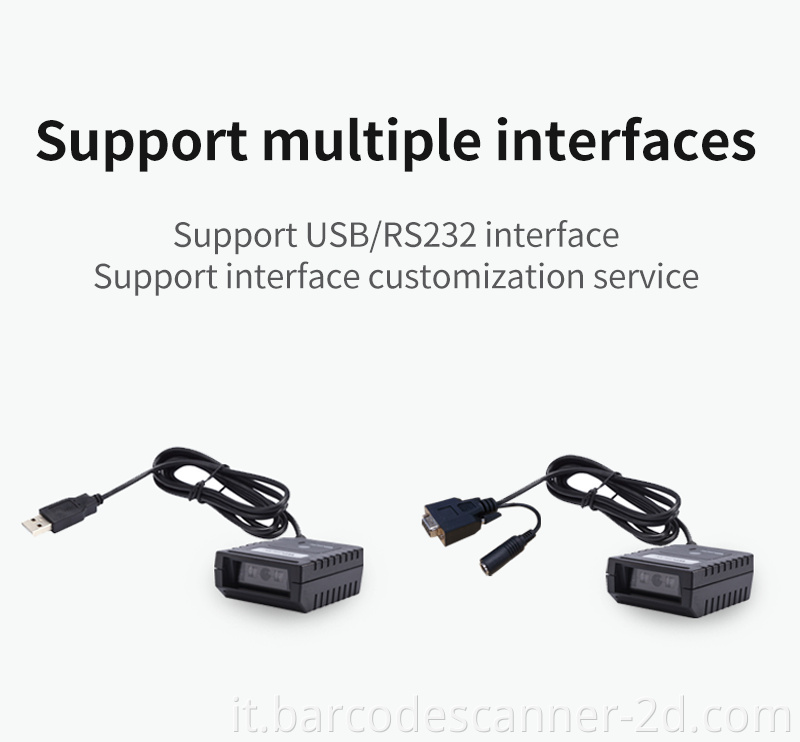

Interface Supported
|
RS-232/USB HID KEYBOARD/USB VCP
|
|
|
Input Voltage
|
DC 5V±10%
|
|
|
Current
|
Max:118mA
|
|
|
Optical Characteristics
|
|
|
|
Image Sensor
|
CCD Linear Sensor
|
|
|
Sensor Resolution
|
2500pixels
|
|
|
Light Source
|
Red LED
|
|
|
Performance Characteristics
|
|
|
|
Decoding rate:
|
350 scans/second±50 scans/second
|
|
|
Scanning Angle
|
Pitch angle:±30°;Skew angle:±70°;Tilt angle:±40°
|
|
|
Min Resolution
|
0.127/5mil（PCS 0.9）
|
|
|
Min .PCS value
|
〉25%UPC/EAN 13（13mil）
|
|
|
Language
|
Multiple Languages
|
|
|
Data Edition
|
Support for custom data output
|
|
|
Decode Capability
|
EAN13，EAN8，UPC A，UPC E，CODABAR（NW-7），CODE 39，CODE 93，INTERLEAVED 2OF5，STANDARD 2OF5，MATRIX 2OF5，CODE 128，EAN/UCC 128，CODE 11，CHINESE POST
|
|
|
|
|
|
wi
Winson WCI-311 CMOS CMOS Fixed Scanner Automatic Scan Schern per Kiosk Devveve 1D CCD CODE Scanner
1D CCD Linear Sensor Sensore Fix Montated Scanner Autigger Automatico Codice di prestazione a scansione rapida Lettore Scansione Codice QR sullo schermo sullo schermo
