Prezzo a basso costo di ottima qualità CCD Codice CCD Lettore portatile 1D OEM Scan Engine
Caratteristiche
|

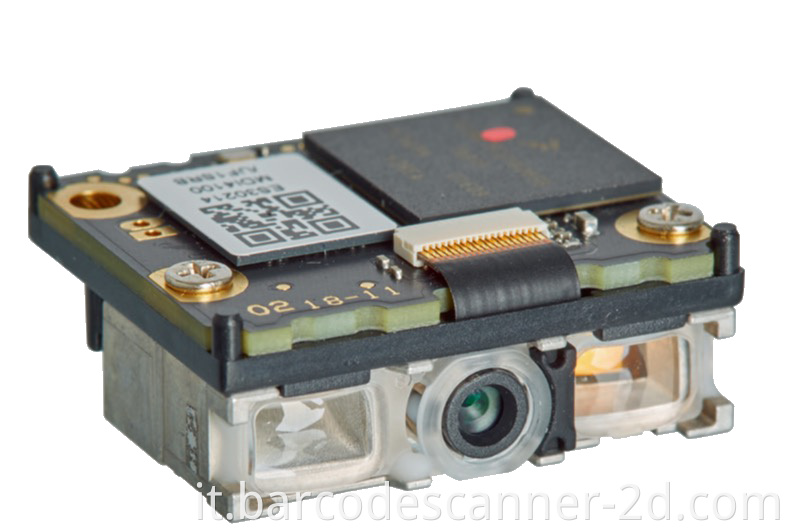

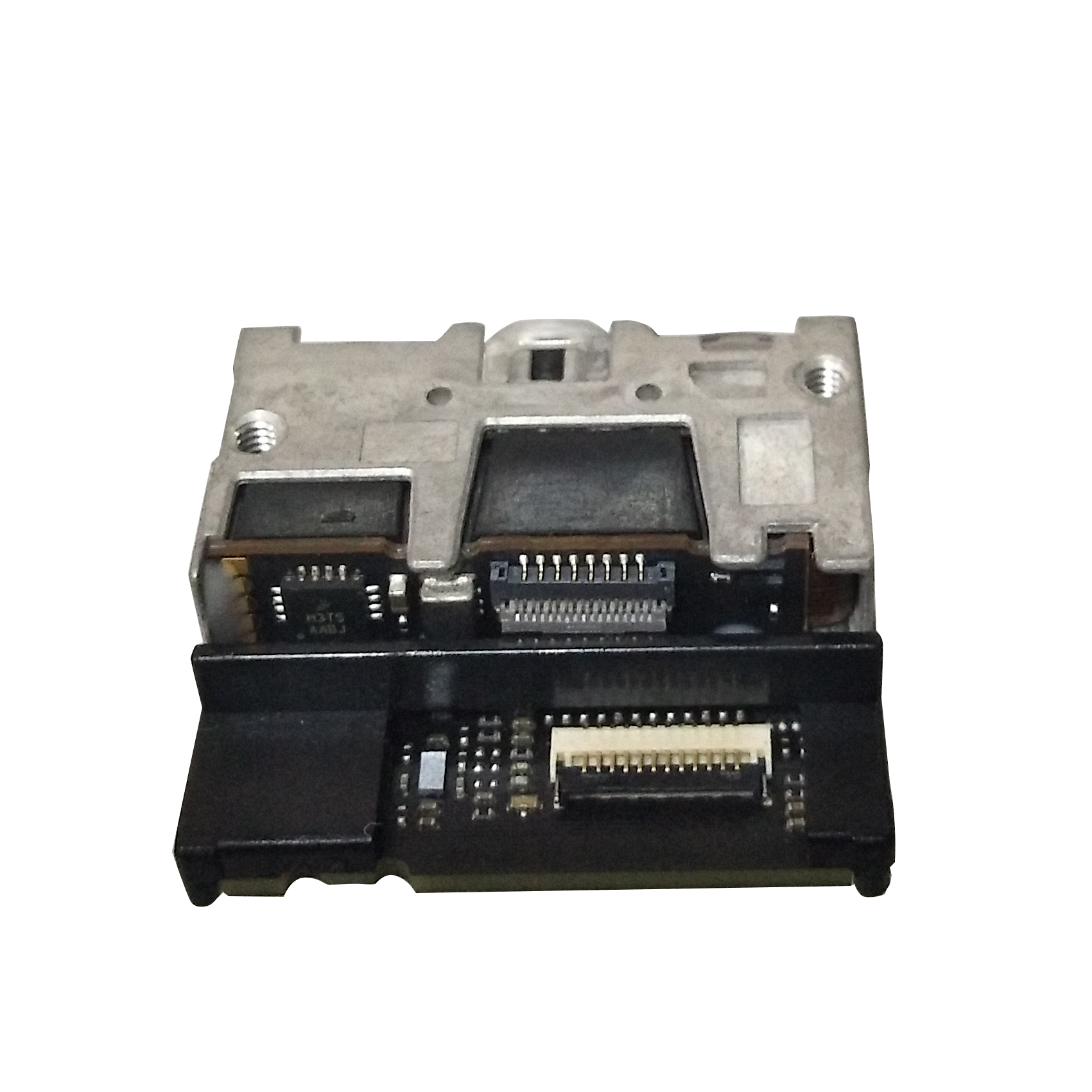

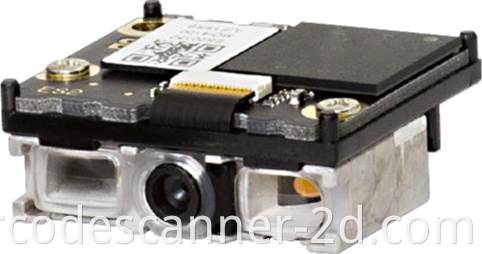

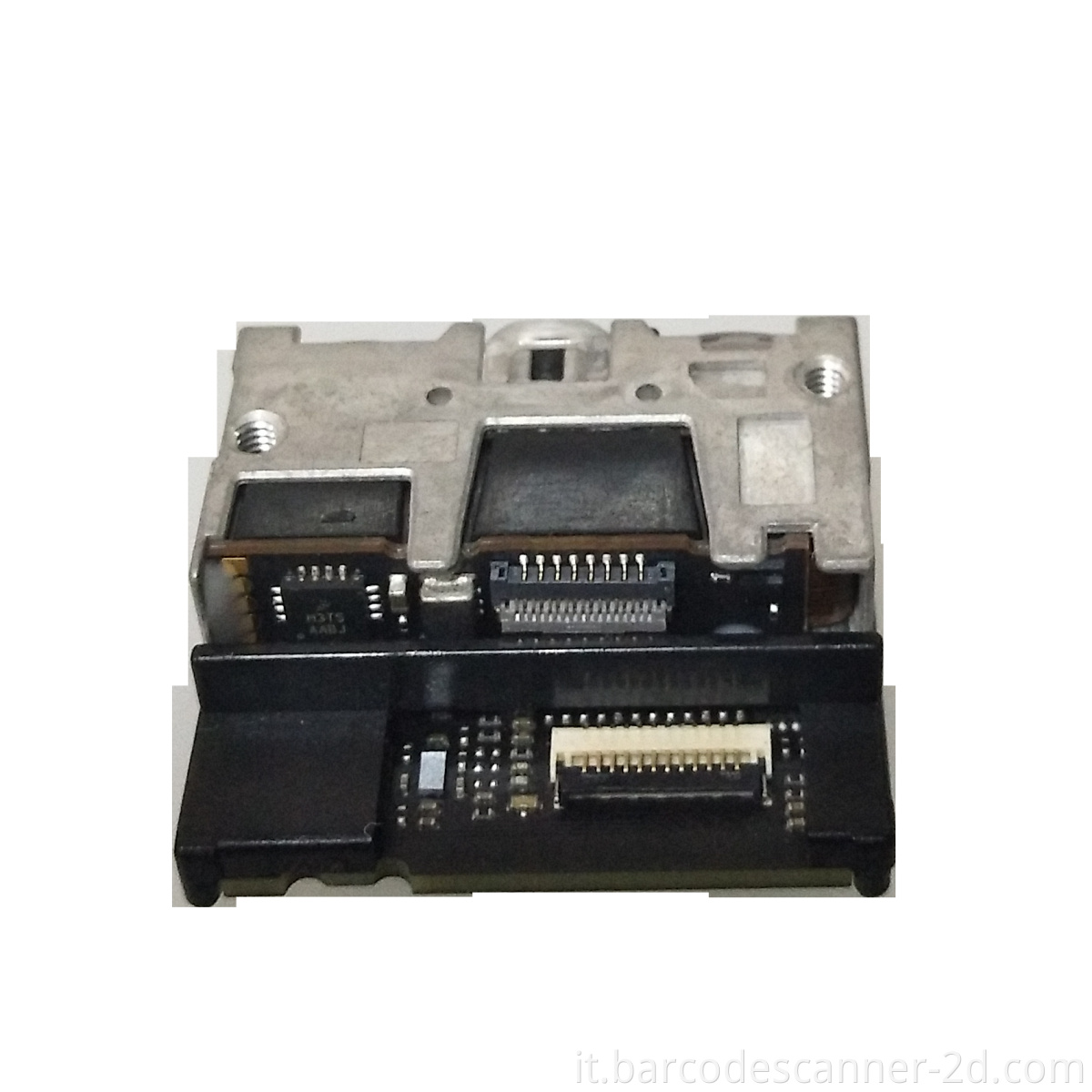

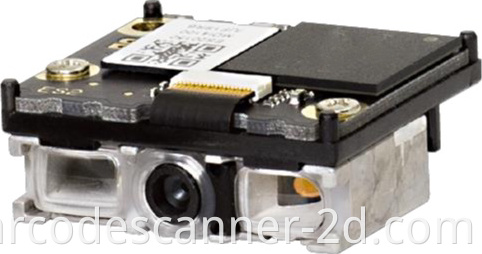

1.Winson WDC-3000 CCD Bar Code Scanner Engine Small Code Reader Module OEM Bar Code Scanner.
|
|
2.Support read poorly printed, damaged, low contrast, wide or high-density codes 2d Stationary Barcode Scanner...
|
|
3.Support add a prefix/suffix, delete the last four characters, interlaced upload data Cmos Fix- Mounted Scanner...
|
|
4.OEM applications:vending machine, payment terminal machine, locker, banking machine, packing machine 1d Code Reader Engine.
|
|
Better scanning performance
32-bit CPU, scanning code speed up to 350 scans per second.
Support bidirectional scanning Accurate scanning, the error rate is 1 / 5,000,000.
|
|
|
|
|
|
Compatibility
Compatible with the current system used by the general public, such as Windows,Android, Mac OS,IOS,Linux,and so on.
|
Mechanical Shock
After 1.0m drop onto concrete surface, still work as usual,shockproof and Anti-broken.
|
Dettagli del prodotto
|
Technical Parameters
|
|
Electrical Characteristics
|
|
Interface
|
TTL-232/USB
|
|
Interface connector
|
0.5-12P FPC
|
|
Voltage requirement
|
DC 3.3/5V±10%
|
|
Current consumption
|
Max:120mA
|
|
Optical Characteristics
|
|
Photo sensor
|
CCD linear sensor
|
|
Sensor Resolution
|
2500pix
|
|
Light source
|
632nm red led
|
|
Performance Characteristics
|
|
Scan Rate
|
350±50 (scans/second)
|
|
Decode angle
|
Pitch angle:±30°
Skew angle:±70°
Tilt angle:±45°
|
|
Min resolution
|
0.127mm/5mil(PCS 0.9)
|
|
Min.PCS value
|
>25%UPC/EAN 13(13mil)
|
|
Curvature
|
R≥15 mm (EAN8),R≥20 mm (EAN13) (resolution=0.26mm,PCS=0.9)
|
|
Identification
|
EAN13,EAN8,UPC A,UPC E,CODABAR(NW-7),CODE 39,CODE 93,INTERLEAVED 2OF5,STANDARD 2OF5,MATRIX 2OF5,CODE 128,EAN/UCC 128,CODE 11,CHINESE POST
|
|
Regulatory
|
|
Electrical Safety
|
UL 60950,EN/IEC 60950
|
|
EMI/RFI
|
FCC Part 15 Class B,EN 55024/CISPR 22
|
|
Environmental
|
RoHS
|
|
Physical Characteristics
|
|
Dimensions
|
23 mm x 21 mm x11mm(L*W*H)
|
|
Weight
|
6g
|
|
Configurations
|
Decode
|
|
Environmental Characteristics
|
|
Temp
|
-0°-65°C / 32°-149°F(operation) -30°- 70°C /-22°-158°F(storage)
|
|
Humidity
|
5 - 90% (operation) 5 - 90% (storage)
|
|
Ambient Light
|
Fluorescent light 4000 lx max , direct sun light 80,000 lx max ,white light 4000 lx max
|
|
Shock drop test
|
1.2m drop onto concrete surface
|
