$481-49 Others
$40.550-199 Others
$35.5≥200Others
| Tipo di pagamento: | L/C,T/T,D/P,D/A,Paypal,Others |
| Incoterm: | FOB,CIF,EXW,DDP |
| Trasporti: | Ocean,Land,Air,Express,Others |
| Porta: | guangzhou |

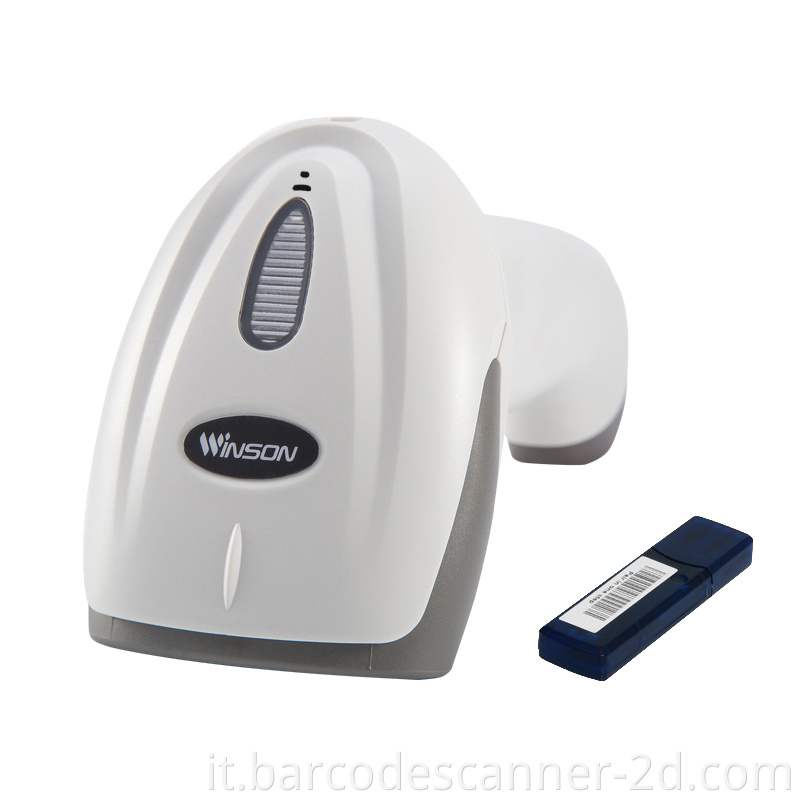

Modello: WNC-6083B/V
marchio: Winson
Certificazione: ce
Stato Del Prodotto: Azione
Tipo Di Elemento Di Scansione: CCD, CMOS
Punto Di Colore: 32 bit
Tipo Di Interfaccia: USB
Luogo D'origine: Cina
Periodo Di Garanzia (anni): 1 anno
Assistenza Post-vendita: Call Center e supporto tecnico in linea
Private Mold: Yes
Products Status: Stock
Type: Wireless 1D Scanner
Scan Element Type: CCD Barcode Scanner
Colour Depth: 32 Bit
Interface Type: usb, COM, PS/2
Max Paper Size: N/A
Optical Resolution: 2500 Pix
Scan Speed: 350+50(scans/second)
Brand Name: Winson
Place Of Origin: Guangdong, China
Warranty(Year): 1-Year
After-sales Service: Call Center And On-Line Technical Support
Software Development Kit (SDK): NO
Nome prodotto: Wireless 1D Scanner
Product Type: 1D CCD Barcode Scanner
Interface: RS-232/USB HID KEYBOARD/USB VCP
Photo Sensor: CCD linear sensor
Communications: RF433
Voltage Requirement: 5VDC±10%
Print Contrast: 20%UPC/EAN 13(13mil)
Min.Resolution: 0.101mm/4mil(PCS 0.9)

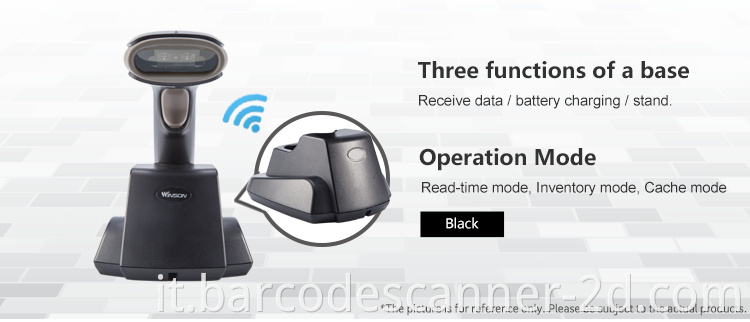

Operation Mode: Read-time mode/ Inventory mode/Cache mode
Shock Drop Test: 1.5m drop onto concrete surface
| Unità vendibili | : | unit |
| Tipo pacchetto | : | Imballaggio personalizzato (negoziato) |
The file is encrypted. Please fill in the following information to continue accessing it

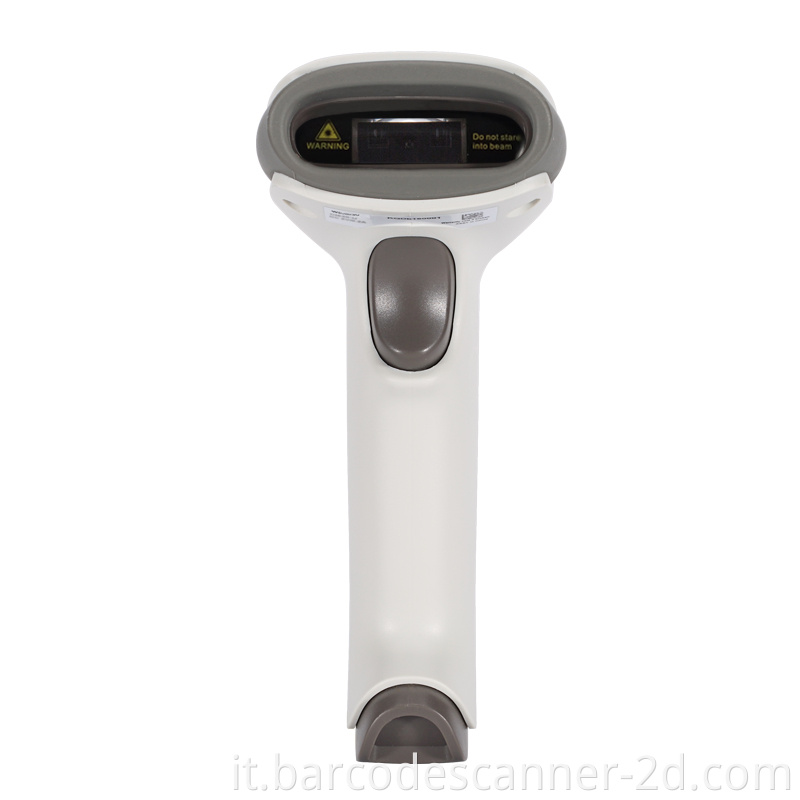

Scanner di codici a barre per magazzino la distanza di lettura può essere a 20 cm di altezza e le informazioni nel codice a barre possono essere lette rapidamente.
Lettore di codice a barre ampia gamma compatto, leggero, ergonomicamente progettato e confortevole da sentire.
BARCODE Scanner 360 Durabilità eccellente: IP54 resistente alla polvere e resistente all'acqua, mentre resiste a gocce di 1,5 metri sul pavimento del cemento, garantendo prestazioni operative affidabili in caso di schizzi liquidi, gocce e collisioni nell'uso quotidiano.
Winson Wireless 2D Stationary Barcode Scanner Supermarket Pagamenti Scanner
|
|

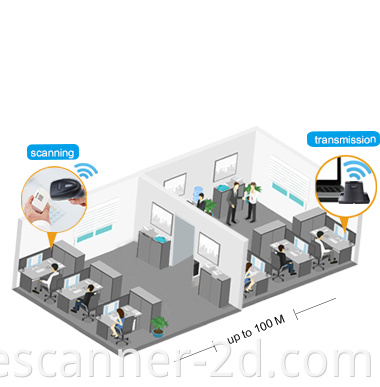

RF433 wireless transmission The transmission range up to 100 meters (In empty area).
Superior reading performance |
|
|
|
|
|
|
2000 mAh lithium battery
Supports 12 hours continuous normal manual trigger
working,compatible with wire and wireless working mode.
|

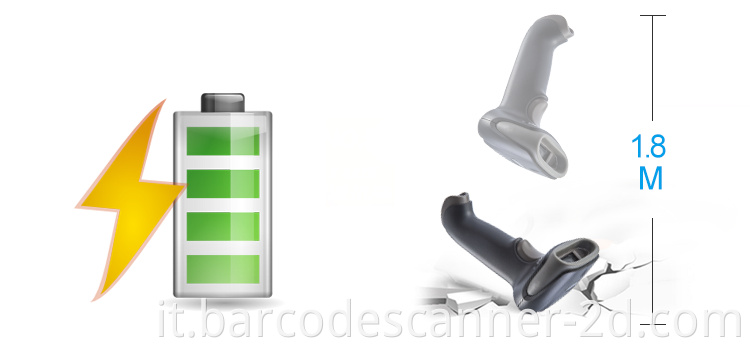

Mechanical Shock After 1.8m drop onto concrete surface, still work as usual,shockproof and Anti-broken. |
433 tecnologia wireless;
Il design squisito, buona applicabilità;

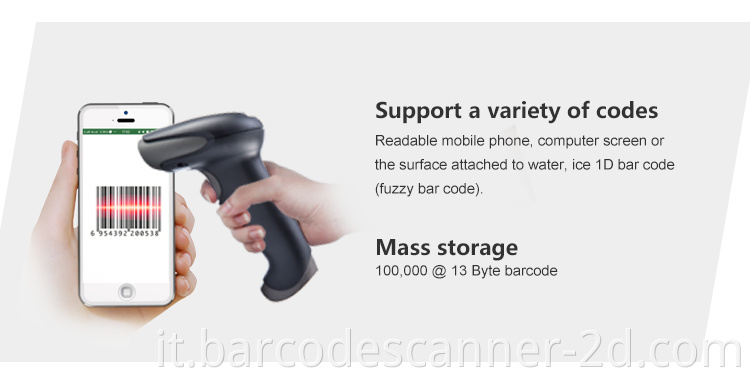

Codice a barre dello schermo e della carta per ottenere un ufficio senza carta.
1.RF433 Tecnologia di trasmissione wireless
Lo scanner di codici a barre di Winson WNC-6083B/V è in grado di raggiungere la trasmissione wireless di 100 metri in un'area aperta, ha una grande memoria di codi a barre di 13 byte da 100.000 pc e modalità in tempo reale, modalità di inventario e modalità cache.
|
technical parameters |
||
|
Wireless specifications |
||
|
Communications |
433 |
|
|
Communication frequency |
430-440MHz |
|
|
Transmission range |
≤100M(In empty area 100M ) |
|
|
Data rate |
10kbps |
|
|
Memory |
100,000@13Byte barcode |
|
|
Battery capacity |
2000mAh (Lithium battery) |
|
|
Charging time |
6H |
|
|
The life time of the full charge |
6h(continuous reading situation) 12h(Manual reading situation) More than 15 days(Stand-by time) |
|
|
Communication mode |
Read-time mode/Inventory mode/Cache mode |
|
|
Electrical Characteristics |
||
|
Interface |
RS-232/USB HID KEYBOARD/USB VCP/RS-485 |
|
|
Voltage requirement |
DC 5V±10% |
|
|
Current consumption |
Max:138mA |
|
|
Optical Characteristics |
||
|
Photo sensor |
CCD linear sensor |
|
|
Sensor Resolution |
2500pix |
|
|
light source |
632nm red led |
|
|
Performance Characteristics |
||
|
Scan Rate: |
350±50 (scans/second) |
|
|
Decode angle |
Pitch angle:±30° Skew angle:±75° Tilt angle:±45° |
|
|
Min resolution |
0.115mm/4.5mil(PCS 0.9) |
|
|
Min.PCS value |
>20%UPC/EAN 13(13mil) |
|
|
Language |
multiple languages |
|
|
Identification |
EAN13,EAN8,UPC A,UPC E,CODABAR(NW-7),CODE 39,CODE 93,INTERLEAVED 2OF5,STANDARD 2OF5,MATRIX 2OF5,CODE 128,EAN/UCC 128,CODE 11,CHINESE POST |
|
|
curvature |
R≥15 mm (EAN8),R≥20 mm (EAN13) (resolution=0.26mm,PCS=0.9) |
|
|
Physical Characteristics |
||
|
Dimensions |
70mm*95mm*168mm(L*W*H) |
|
|
Weight |
172g Scanner:172g 188g Receiver:188g |
|
|
Temp |
-20°-65°C / -4°-149°F((operation) ) -30°- 70°C /-22°-158°F(storage) |
|
|
Humidity |
5 - 90% (operation) ) 5 - 90% (storage) |
|
|
Ambient Light |
fluorescent light 4000 lx max , direct sun light 80,000 lx max ,white light 4000 lx max |
|
|
Shock drop test |
1.5m drop onto concrete surface |
|
|
Regulatory |
||
|
Electrical Safety |
UL 60950,EN/IEC 60950 |
|
|
EMI/RFI |
FCC Part 15 Class B,EN 55024/CISPR 22 |
|
|
Environmenta |
RoHS |
|
