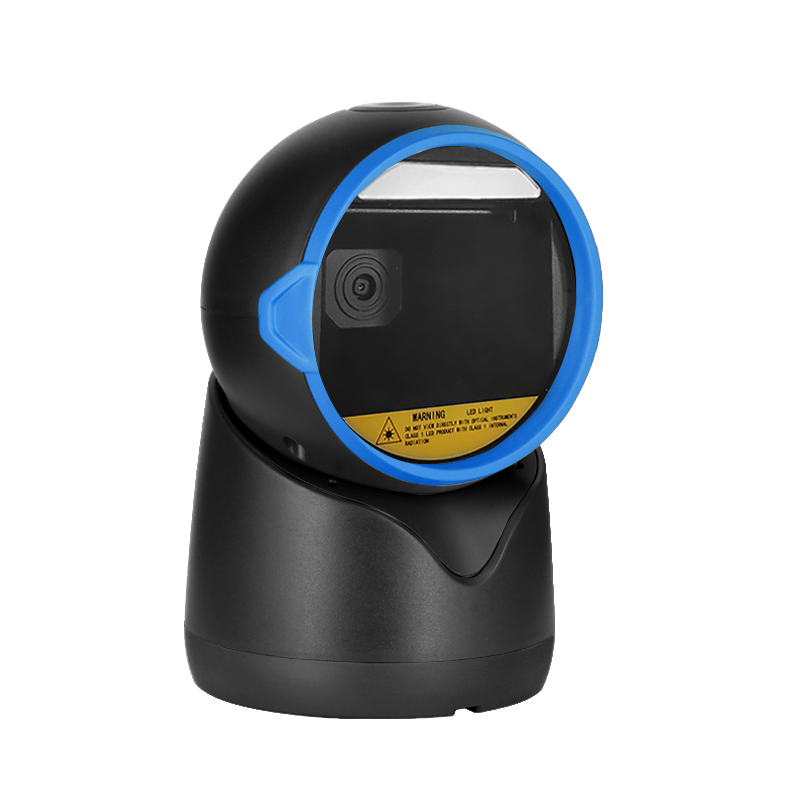

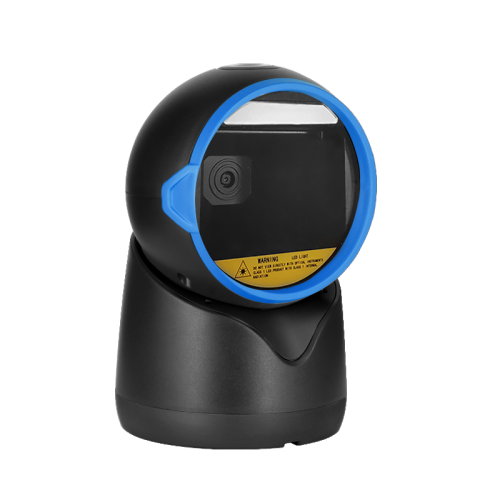

Scanner BT a barre BT 2D OMNI
$501-99 Others
$45100-499 Others
$40≥500Others
Tipo di pagamento: | L/C,T/T,D/P,D/A,Paypal |
Incoterm: | FOB,CIF,EXW,DDP |
Trasporti: | Ocean,Land,Air,Express |
Porta: | guangzhou |
$501-99 Others
$45100-499 Others
$40≥500Others
Tipo di pagamento: | L/C,T/T,D/P,D/A,Paypal |
Incoterm: | FOB,CIF,EXW,DDP |
Trasporti: | Ocean,Land,Air,Express |
Porta: | guangzhou |
Modello: WAI-5784P
marchio: Winson
Certificazione: ce, altro
Stato Del Prodotto: Azione
Tipi Di: Scanner di codici a barre
Tipo Di Elemento Di Scansione: CMOS
Punto Di Colore: 32 bit
Tipo Di Interfaccia: USB
Luogo D'origine: Cina
Periodo Di Garanzia (anni): 1 anno
Assistenza Post-vendita: Call Center e supporto tecnico in linea, Altri
Private Mold: Yes
Products Status: Stock
Type: Barcode Scanner
Scan Element Type: Cmos
Colour Depth: 8 Bit
Interface Type: usb, Other
Max Paper Size: N/A
Optical Resolution: 960 x 640 Pixels
Scan Speed: 60fps
Brand Name: Winson
Place Of Origin: Guangdong, China
Warranty(Year): 1-Year
After-sales Service: Call Center And On-Line Technical Support
Software Development Kit (SDK): NO
Color: Black
Interface: RS-232/USB HID KEYBOARD/USB VCP
Voltage Requirement: DC 5V±5%
Current Consumption: Max:335mA
Photo Sensor: CMOS array sensor
Light Source: Red LED
Min Resolution: 1D ≥ 5mils,2D ≥ 10mils
Min.PCS Value: >15%UPC/EAN 13(13mil)
Sertifikasi: Ce
Unità vendibili | : | unit |
Tipo pacchetto | : | Imballaggio personalizzato (negoziato) |
Esempio immagine | : |
The file is encrypted. Please fill in the following information to continue accessing it
Design Design privo di mani libera la tua mano e migliora il modulo scanner per piccoli codici a barre di lavoro .

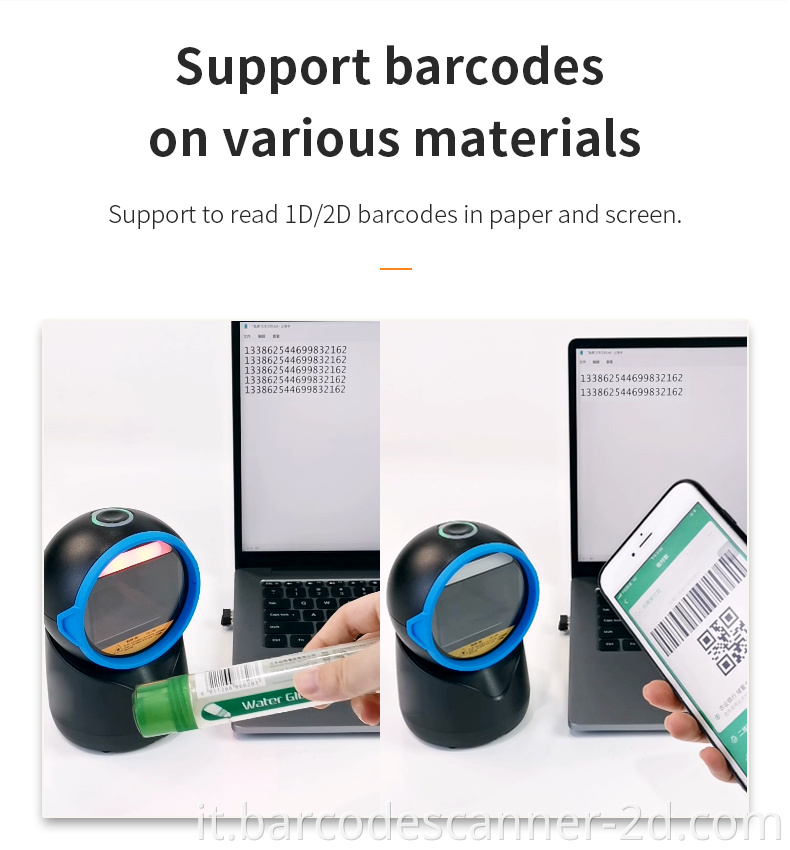

Abilità di decodifica super, veloce per scansionare sia la schermata di telefono stampato che il terminale Smart .
Scanner di codici a barre desktop 2D QR 1D Omnidirezionale Lettore a barre cablato USB a mani libere
Scanner di codice a barre desktop 2D QR 2D con laser

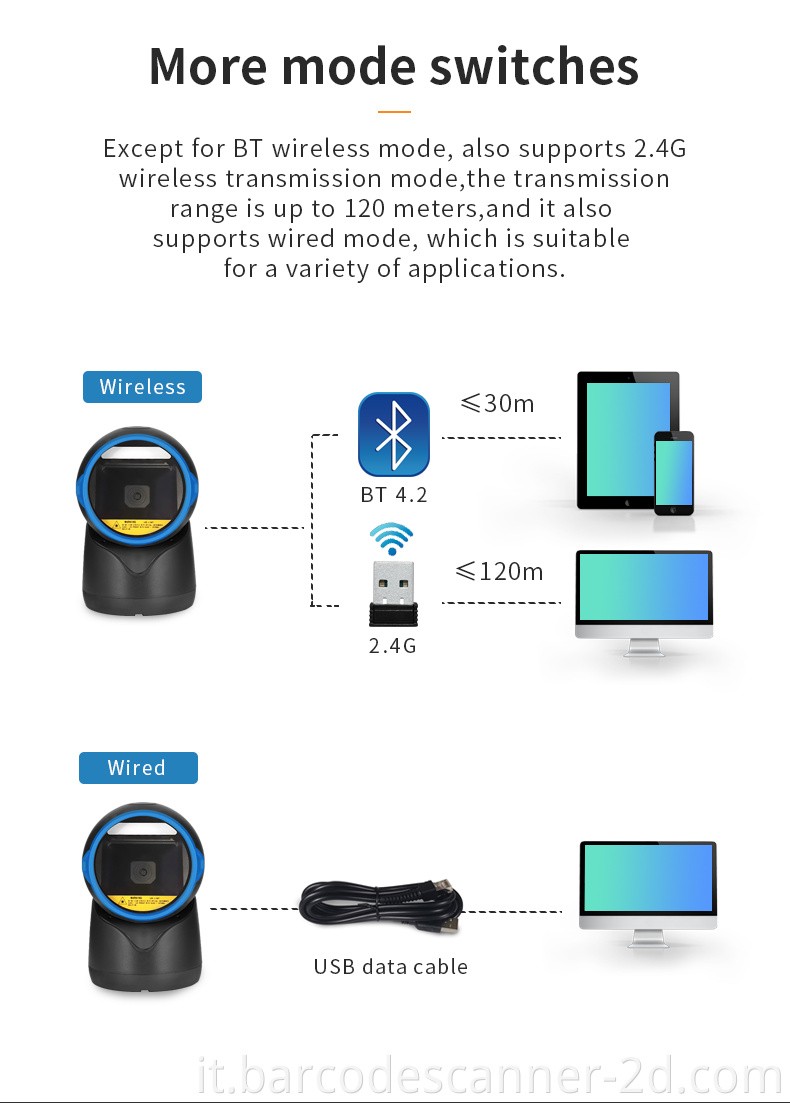

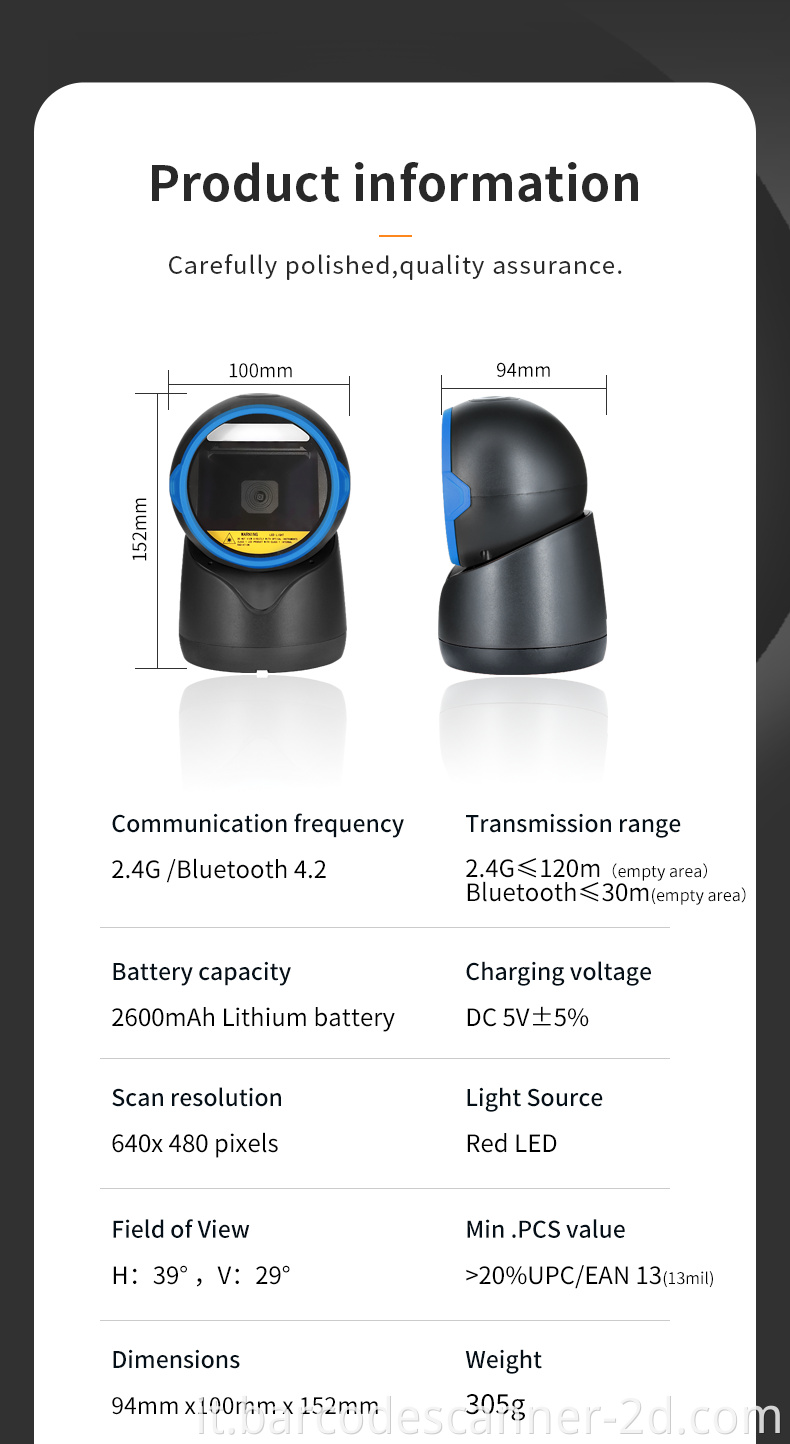

Communication mode
|
Wired transmission mode/ Wireless Read-time mode/Inventory mode/Cache mode
|
Communication mode
|

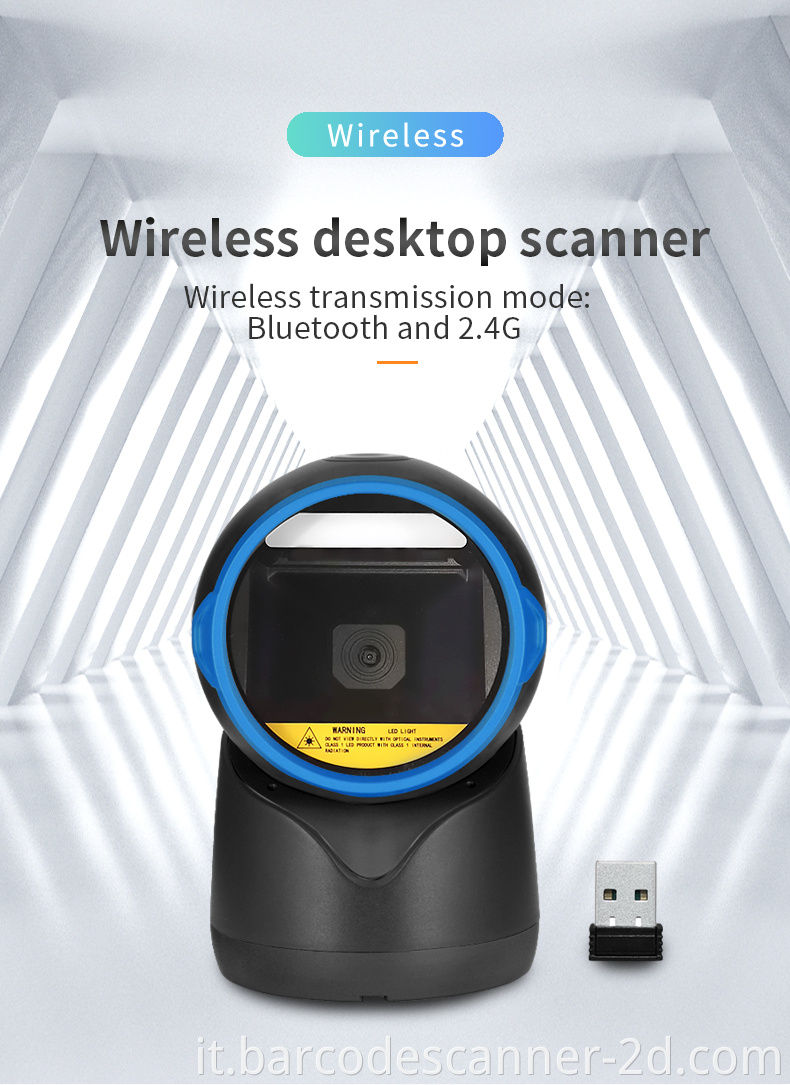

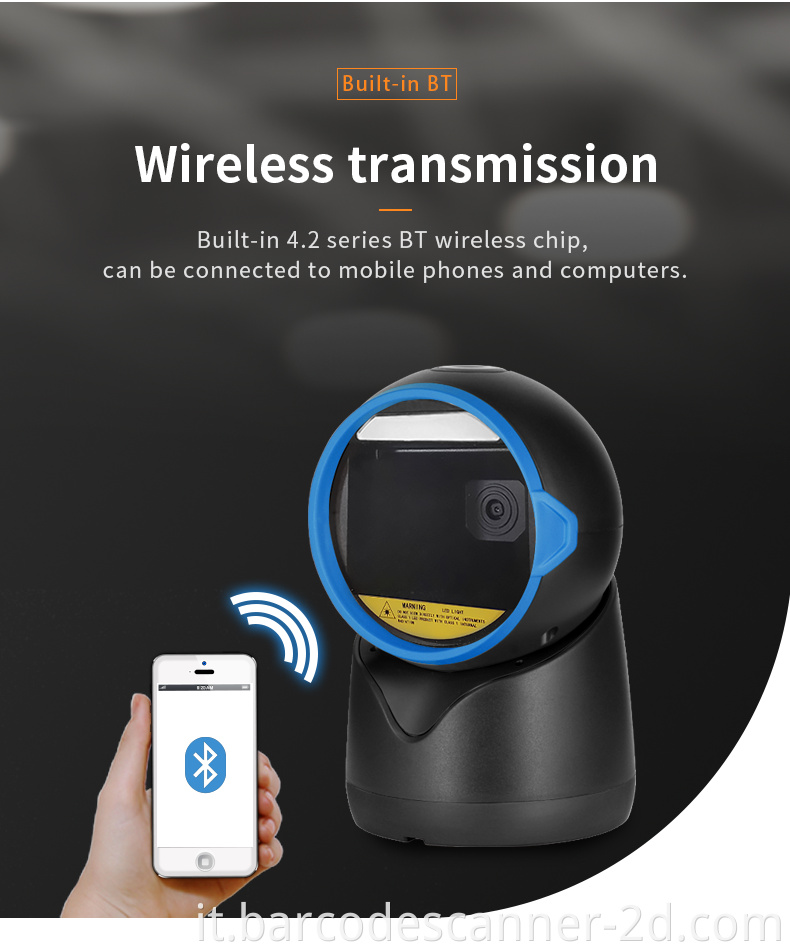

Wireless 2.4G&Blue tooth 4.2
|
Transmission range
|
Wireless 2.4G ≤ 120M
Blue tooth ≤ 30m
|
Battery capacity
|
2600mAh lithium battery
|
Charge Time from Empty to Full Charge
|
15H
|
Charging voltage
|
DC 5V±5%
|
Scans per Battery Charge
|
60000 times (1 scan per second)
|
sensor
|
CMOS sensor
|
Scan resolution
|
640x 480pixels
|
Light Source
|
Red LED
|
Scanning Angle
|
Pitch angle:±65° Skew angle:±65° Tilt angle:±180°
|
Min Resolution
|
1D ≥ 5mils 2D ≥ 10mils
|
Min .PCS value
|
>20%UPC/EAN 13(13mil)
|

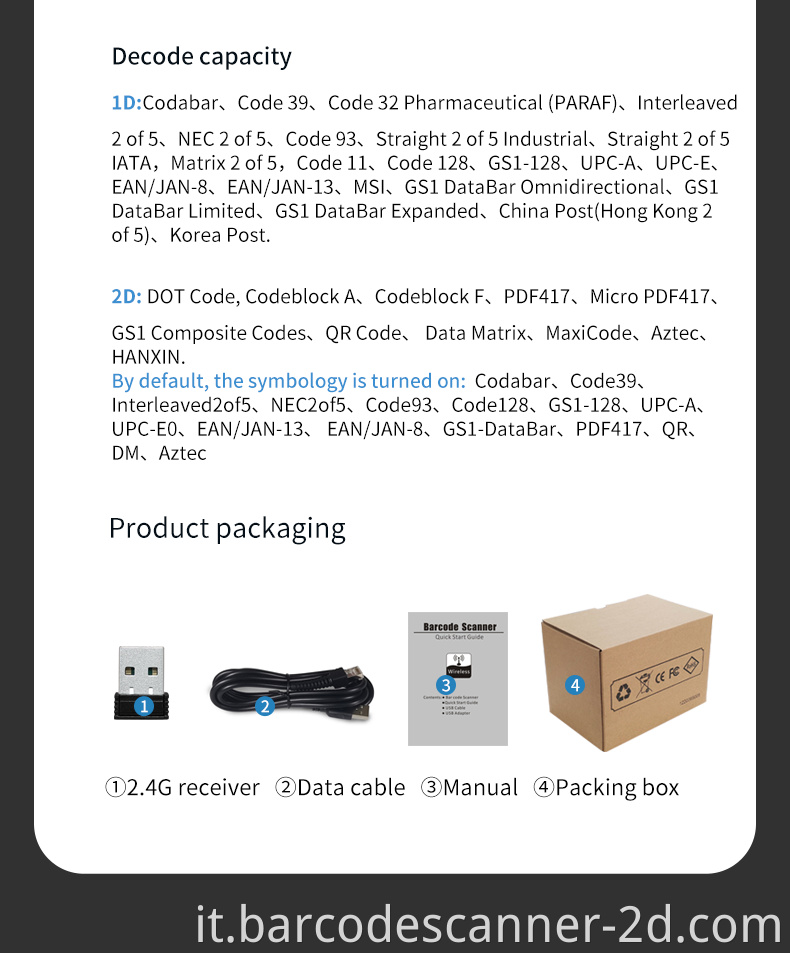

Decode capacity
|
1D:Codabar、Code 39、Code 32 Pharmaceutical (PARAF)、Interleaved 2 of 5、NEC 2 of 5、Code 93、Straight 2 of 5 Industrial、Straight 2 of 5
IATA,Matrix 2 of 5,Code 11、Code 128、GS1-128、UPC-A、UPC-E、 EAN/JAN-8、EAN/JAN-13、MSI、GS1 DataBar Omnidirectional、GS1 DataBar Limited、GS1 DataBar Expanded、China Post(Hong Kong 2 of 5)、Korea Post. 2D:DOT Code, Codeblock A、Codeblock F、PDF417、Micro PDF417、GS1 Composite Codes、QR Code、 Data Matrix、MaxiCode、Aztec、HANXIN. By default, the symbology is turned on: Codabar、Code39、Interleaved2of5、NEC2of5、Code93、Code128、GS1-128、UPC-A、UPC-E0、EAN/JAN-13、 EAN/JAN-8、GS1-DataBar、PDF417、QR、DM、Aztec |
Data Edition
|
Support for custom data output
|
Dimensions
|
94mm x100mm x 152mm(L*W*H)
|
