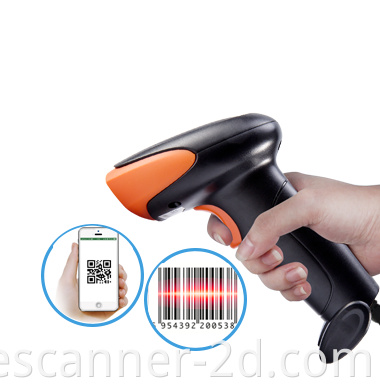

WNI-5010G, Mobile Computer Mobile Plug e riproduttore a barre del codice a barre a barre a barre portatile portatile
2 colori disponibili: (1) nero+blu (2) nero+arancione
|
Superior reading performance
32-bit CPU,Winson barcode scanner is reading in high efficient, precise and sensitive.
Support a variety of codes
Readable mobile phone, computer screen or the surface attached to water, ice 1D and 2D bar code (fuzzy bar code).
|
|
|
|
|
Plug and play
General Purpose Barcode Scanner Plug and play, no need to manually install the driver (for USB HID KEYBOARD, USB VCP (Windows10 below USB VCP need to install the driver)).
|
Compatibility
Ccd Barcode Scanner Compatible with the current system used by the general public, such as Windows, Android, Mac OS, IOS, Linux, and so on.
|
Dettagli del prodotto
1. Prestazioni di decodifica superiori:
Alta risoluzione: 648x488, un basso tasso di errore di decodifica può aiutare a migliorare l'efficienza di lavoro.
2. Progettazione del processo perfetta ed esperienza finale:
Winson WNI-5010G utilizza materiale ABS importato, la gomma di alta qualità è un buon buffer contro l'impatto. Il bel design lo rende diverso e popolare. Si applica al cassiere per il pagamento mobile e la logistica ed express.

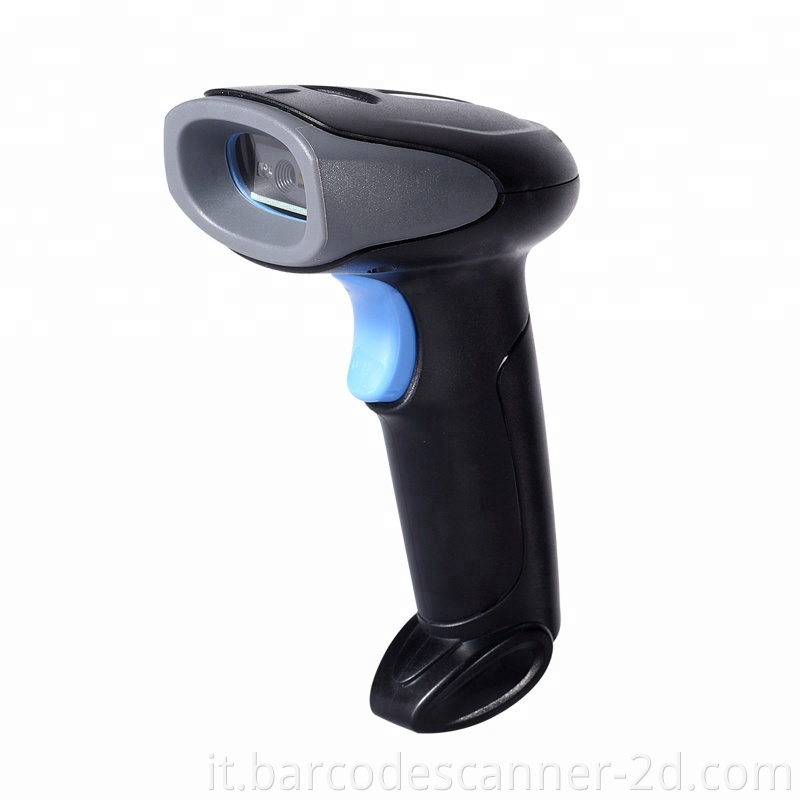

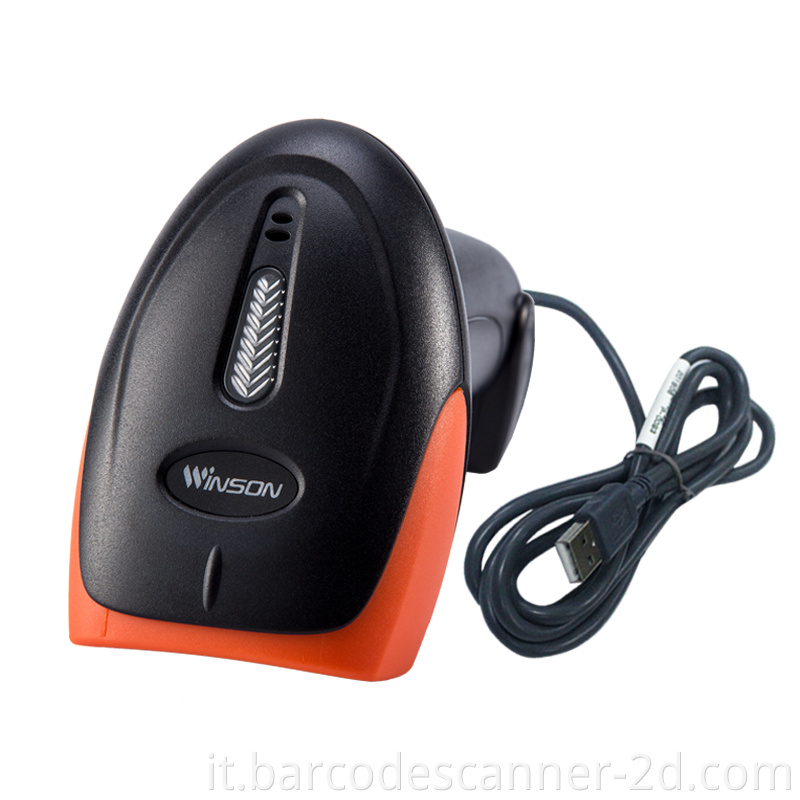

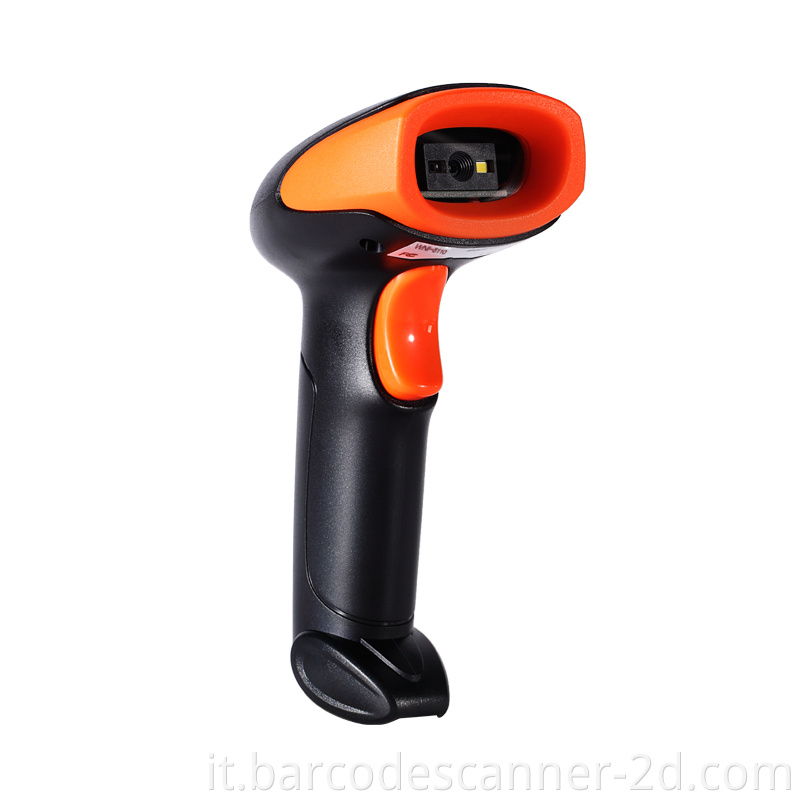

3.2 Colori disponibili: (1) nero+blu (2) nero+arancione
|
Technical Parameters
|
|
Electrical Characteristics
|
|
Interface
|
USB HID KEYBOARD/USB VCP
|
|
Voltage requirement
|
5VDC±10%
|
|
Current consumption
|
Max:120mA
|
|
Optical Characteristics
|
|

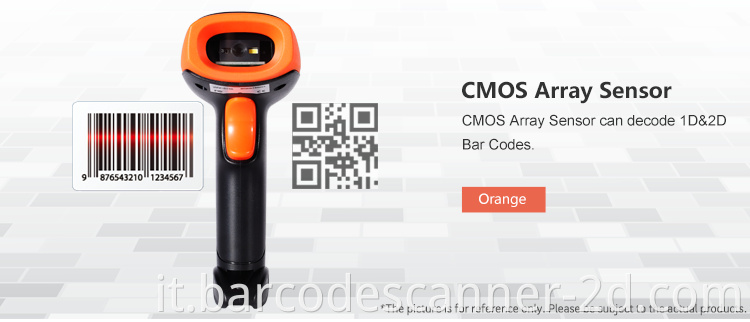

Photo sensor
|
CMOS array sensor
|
|
SENSOR RESOLUTION
|
648X488 pixels
|
|
light source
|
white LED*1
|
|
Aim light source
|
Red Bar led
|
|
Performance Characteristics
|
|
Decode angle
|
Pitch angle:±65°
Skew angle:±60°
Tilt angle:±180°
|
|
Min resolution
|
1D:5mil(0.127)
|
|
Min.PCS value
|
>30%UPC/EAN 13(13mil)
|
|
Language
|
multiple languages
|
|
Field of View
|
34°(H),26°(V)
|
|
Identification
|
1D:UPC/EAN,Code 128, Code 39,
Code 93, Code 11, Matrix 2 of 5, Interleaved 2 of 5, Codabar, MSI,GS1 Databar
2D:QR, PDF417,Data Matrix
|
|
Physical Characteristics
|
|
Dimensions
|
97 mm H x67 mm W x165 mm D
|
|
Weight
|
122.8g
|
|
Environmental Characteristics
|
|
Temp
|
-20°to 60°C / -4°-140°F((operation) ) -40°-to 80°C /-40°-176°F(storage)
|
|
Humidity
|
5 - 95% (operation) ) 5 - 95% (storage)
|
|

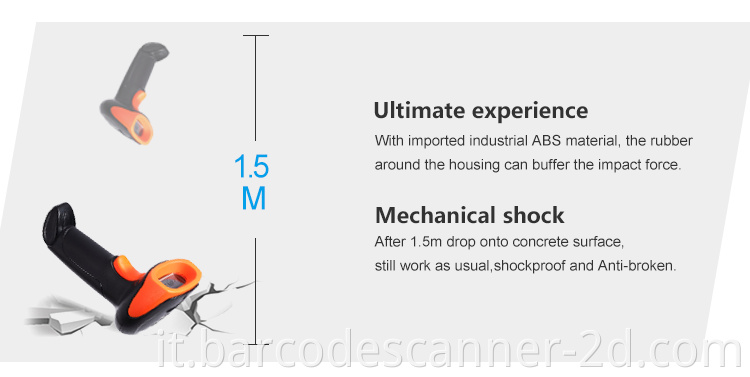

Shock drop test
|
1.2m drop onto concrete surface
|
|
Ambient Light:
|
fluorescent light 4000 lx max , direct sun light 80,000 lx max ,white light 4000 lx max
|
|
Regulatory
|
|
Electrical Safety
|
UL 60950,EN/IEC 60950
|
|
EMI/RFI
|
FCC Part 15 Class B,EN 55024/CISPR 22
|
|
Environmental
|
RoHS
|
