Guangzhou Winson Information Technology Co., Ltd.
$37.51-49 Others
$32.550-199 Others
$25.5≥200Others
| Tipo di pagamento: | L/C,Western Union,D/P,T/T |
| Incoterm: | FOB,EXW,DDP |
| Trasporti: | Ocean,Land,Air,Express |
| Porta: | guangzhou |

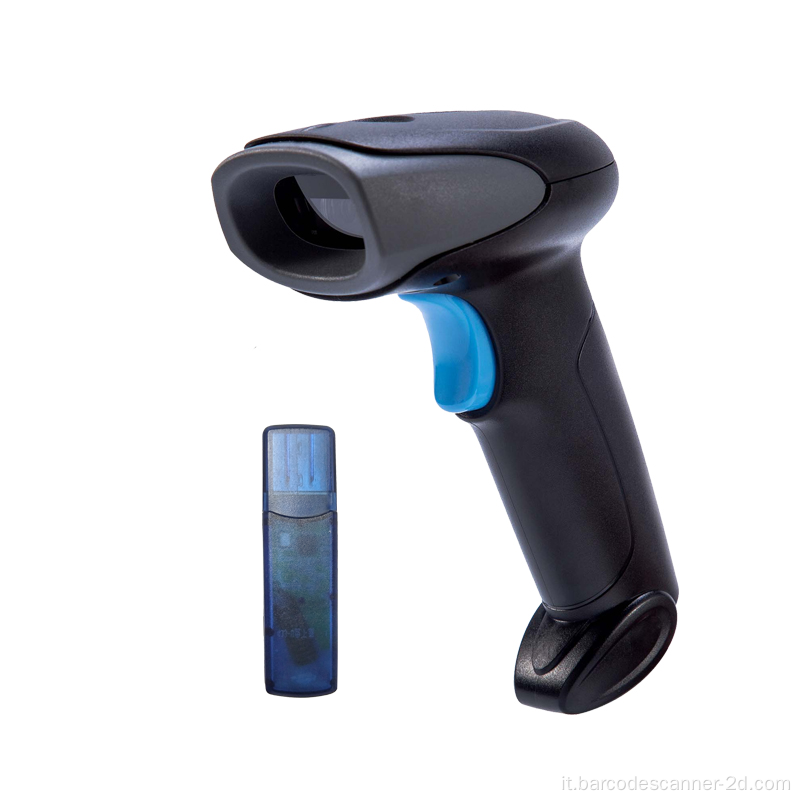

Modello: WNC-5083/V
marchio: Winson
Certificazione: ce, altro
Stato Del Prodotto: Azione
Tipi Di: Scanner di codici a barre
Tipo Di Elemento Di Scansione: CMOS
Punto Di Colore: 32 bit
Tipo Di Interfaccia: USB
Luogo D'origine: Cina
Periodo Di Garanzia (anni): 1 anno
Assistenza Post-vendita: Call Center e supporto tecnico in linea
Private Mold: Yes
Products Status: Stock
Type: Barcode Scanner
Scan Element Type: Ccd
Colour Depth: 32 Bit
Interface Type: usb, RS232/RS485
Max Paper Size: N/A
Optical Resolution: 2500 Pix
Scan Speed: 350+50(scans/second)
Brand Name: Winson
Place Of Origin: Guangdong, China
Warranty(Year): 1-Year
After-sales Service: Call Center And On-Line Technical Support
Software Development Kit (SDK): NO
Color: Black
Communication: RF433
Voltage/Current: DC 5V+-10% ; MAX 138ma
Transmission Range: <=100m in empty area
Interface: USB HID KEYBOARD / USB VCP
Photo Sensor: CCD linear sensor
Operation Mode: read time, inventory, cache mode
Battery Capacity: 1500mah lithium battery
Charging Time: 4.5H
Working Time: 4h: continuous reading; 9.5h manual reading; 15days standby
Memory: 100000@13 byte barcode
| Unità vendibili | : | piece |
| Tipo pacchetto | : | Personalizzato/OEM |
The file is encrypted. Please fill in the following information to continue accessing it
Visualizza di più >> consigliato dal venditore
|
Communication mode
|
Wired transmission mode/ Wireless Read-time mode/Inventory mode／Cache mode
|
|
Communication frequency
|
433-440MHz
|
|
Transmission range
|
≤100M（In empty area 100M ）
|
|
Battery capacity
|
1500mAh (Lithium battery)
|
|
Charge Time from Empty to Full Charge
|
4.5H
|
|
Scans per Battery Charge
|
30,000 （1 scan per second）
|
|
Memory
|
100，000@13Byte barcode
|
|
Interface Supported
|
USB HID KEYBOARD/USB VCP
|
|
Input Voltage
|
DC 5V±10%
|
|
Current
|
Max:135mA
|
|
Image Sensor
|
CCD Linear Sensor
|
|
Sensor Resolution
|
2500pixels
|
|
Light Source
|
632nm Red LED
|
|
Decoding rate:
|
350 scans/second±20 scans/second
|
|
Scanning Angle
|
Pitch angle:±35°;Skew angle:±75°;Tilt angle:±40°
|
|
Min Resolution
|
0.105/4mil（PCS 0.9）
|
|
Min .PCS value
|
〉25%UPC/EAN 13（13mil）
|
|
Language
|
Multiple Languages
|
|
Data Edition
|
Support for custom data output
|
|
Decode Capability
|
EAN13，EAN8，UPC A，UPC E，CODABAR（NW-7），CODE 39，CODE 93，INTERLEAVED 2OF5，STANDARD 2OF5，MATRIX 2OF5，CODE 128，EAN/UCC 128，CODE
11，CHINESE POST |
|
Dimensions
|
Scanner：97mm*67mm*165mm(L*W*H)
Receiver：55mm*24mm*8mm(L*W*H) |
|
Indicator
|
Beeper, LED
|
|
Temperature
|
-20°∽65°C / -4°∽149°F(operation) /-30°∽70°C /-22°∽158°F(storage)
|
