Laser 1D 1D Ccode wireless WNL-1052

$251-49 Others

$2350-199 Others

$21≥200Others

Tipo di pagamento:	L/C,Western Union,MoneyGram,T/T,D/P,D/A,Paypal
Incoterm:	FOB,EXW,DDP
Trasporti:	Ocean,Land,Air,Express,Others
Porta:	Guangzhou

Option:

WNL-1052

contattaci ora

Descrizione del prodotto

Caratteristiche del prodotto

Confezionamento e consegna

Descrizione del prodotto

Caratteristiche del prodotto

Modello: WNL-1052

marchio: Winson

Private Mold: Yes

Products Status: Stock

Type: Laser Handheld Barcode Scanner

Scan Element Type: Laser Barcode Scanner

Colour Depth: 32 Bit

Interface Type: Usb, Rs232

Max Paper Size: N/A

Optical Resolution: 1D:4mil

Scan Speed: 250 Scans/sec

Brand Name: Winson

Place Of Origin: Guangdong, China

Warranty(Year): 1-Year

After-sales Service: Call Center And On-Line Technical Support

Software Development Kit (SDK): NO

Color: Black

Interface: USB HID KEYBOARD/USB VCP

Light Source: 650nm Visible Laser Diode

Operating Mode: Cache mode/Inventory mode

Min .PCS Value: >30%UPC/EAN 13(13mil)

Mechanical Shock: 1.5m drop onto concrete surface

Charging Time: 5h

Transmission Range: 30m (In empty area)

Confezionamento e consegna

Unità vendibili	:	unit
Tipo pacchetto	:	BOX BOX BOX o imballaggio personalizzato (negoziato) 1pcs/scatola, 20/50pcs/cartone
Esempio immagine	:

The file is encrypted. Please fill in the following information to continue accessing it

Descrizione del prodotto

Barcode Reader

Versatile: interfacce come PS2, RS232, USB, USB-COM, ecc. Sono disponibili Scanner di codici a barre per uso generale .

La distanza di lettura può essere su a 20 cm di altezza e le informazioni nel codice a barre possono essere lette rapidamente il modulo scanner di codice QR .

Compatto, leggero, ergonomicamente progettato e comodo per sentire il lettore di codici a barre Arduino .

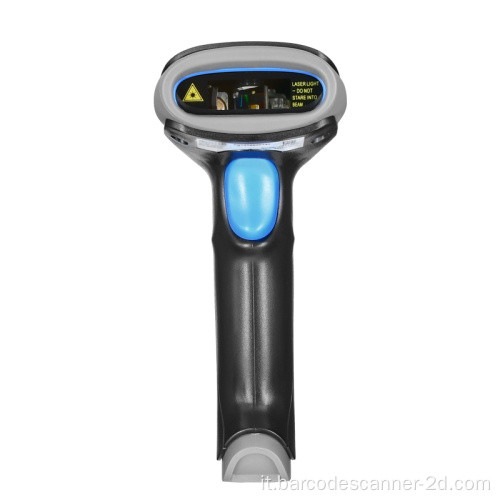

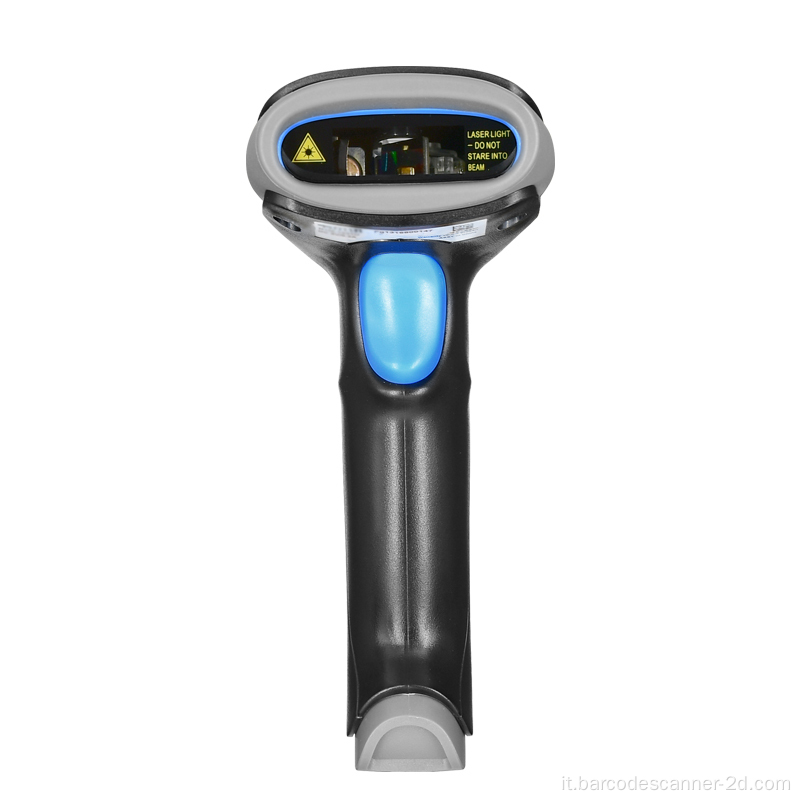

Barcode Reader Winson WNL-1052 Scanner a barre laser 1D Scanner di codici a barre 1D

winson company

Dettagli del prodotto

Wireless Characteristics
Communication mode		Cache mode/Inventory mode
Communication mode		2.402 to 2.480GHz
Transmission range		30m(In empty area)
Battery capacity		2000mAh (Lithium battery)
Charge Time from Empty to Full Charge		5H
Duration of use		11H (wireless mode,real-time mode communication mode,60 scans/minute)
Electrical Characteristics
Interface Supported		USB HID KEYBOARD/USB VCP
Input Voltage		DC 5V±5%
Current		Max:185mA
Performance Characteristics
Light Source		650nm visible laser diode
Decoding speed		100±20/s
Scanning Angle		Pitch angle:-30° to 0°,0° to +30°
		Skew angle:-60° to 0°,0° to +60°
		Tilt angle:-30° to 0°,0° to +30°
Min Resolution		1D : 4mils
Min .PCS value		>30%UPC/EAN 13(13mil)
Decode Capability		1D:EAN13,EAN8,UPC A,UPC E,ISSN, ISBN, UPC-A , UPC-E , CODE39 , CODE32, CODE128, UCC-EAN128, CODE93, CODE11, CODABAR, MSI, CROSS 25 CODE, CHINA POST 25 CODE, MATRIX 25CODE,INDUSTRIAL 25 CODE, GS1 DataBar Omnidirectional, GS1 DataBar Limited
Environmental Characteristics
Temperature		operation:0°C-50°C
		storage:-10°C-60°C
Humidity		operation:20%~85% (no condensation)
		storage:20%~95%(no condensation)
Physical Characteristics
Dimensions			90mm x67mm x 168mm(LWH)
Weight			130g
Indicator			Beeper, LED
Decoding Depth of Field
Symbology	Resolution			Barcode number	Barcode width	Nearest	Farthest
Code128	5mil			20	4.3x1.5cm	5cm	10cm
Code128	15mil			7	4.3x1.5cm	2.5cm	26cm
Code39	6.67mil			16	4.4x1.5cm	3cm	19cm
Code39	20mil			4	4.3x1.5cm	3cm	32cm
EAN13	13.34mil			13	4.2x1.5cm	2cm	24cm
