Guangzhou Winson Information Technology Co., Ltd.
$15.91-49 Others
$14.950-99 Others
$11.9≥100Others
| Tipo di pagamento: | L/C,T/T,D/P,D/A,Paypal,Others |
| Incoterm: | FOB,CFR,CIF,EXW,DDP |
| Trasporti: | Ocean,Land,Air,Express,Others |
| Porta: | guangzhou |
Modello: WAI-1318
marchio: Winson
Certificazione: ce
Stato Del Prodotto: Azione
Tipi Di: Scanner di codici a barre
Tipo Di Elemento Di Scansione: CCD, CMOS
Punto Di Colore: 32 bit
Tipo Di Interfaccia: USB
Luogo D'origine: Cina
Periodo Di Garanzia (anni): 1 anno
Assistenza Post-vendita: Call Center e supporto tecnico in linea
Products Status: Stock
Type: Barcode Scanner
Scan Element Type: Cmos
Colour Depth: 32 Bit
Interface Type: usb, Other
Max Paper Size: N/A
Optical Resolution: 640X480 pixels
Scan Speed: 30
Brand Name: Winson
Place Of Origin: Guangdong, China
Warranty(Year): 1-Year
After-sales Service: Call Center And On-Line Technical Support
Nome prodotto: 2D Hands-Free Barcode Scanner
Interface: RS232/USB HID KEYBOARD
Voltage Requirement: 5VDC±10%
Current Consumption: Max:280mA
Light Source: White Led
Dimensions: 108.5 mm H x95.5 mm W x90.6 mmD
Weight: 232.5g
Mechanical Shock: 1.2m drop onto concrete surface
OTHER: Contact us
Sertifikasi: Ce
| Unità vendibili | : | unit |
| Tipo pacchetto | : | Imballaggio personalizzato (negoziato) |
The file is encrypted. Please fill in the following information to continue accessing it

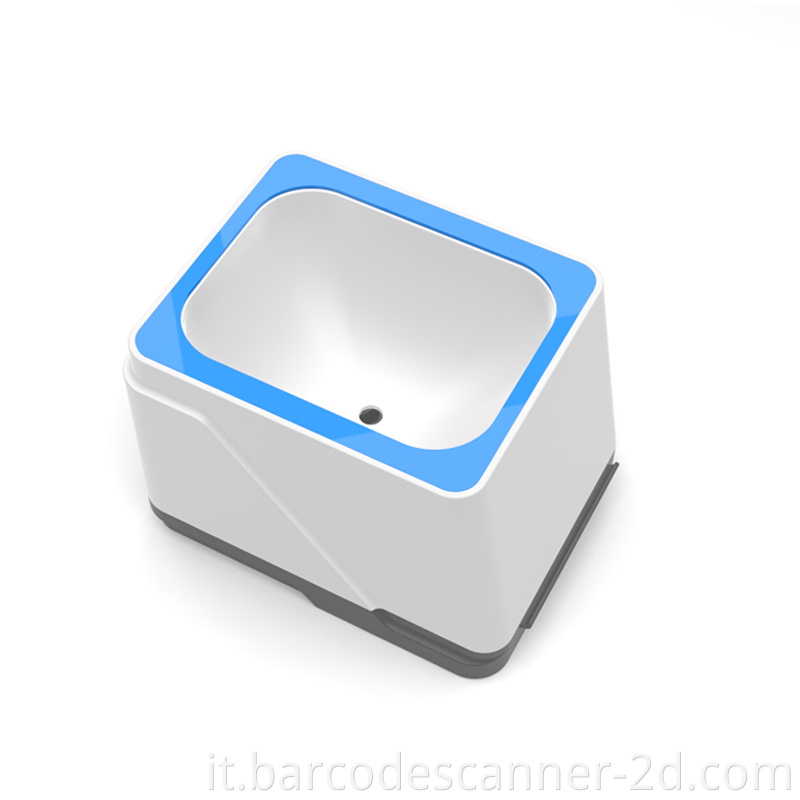

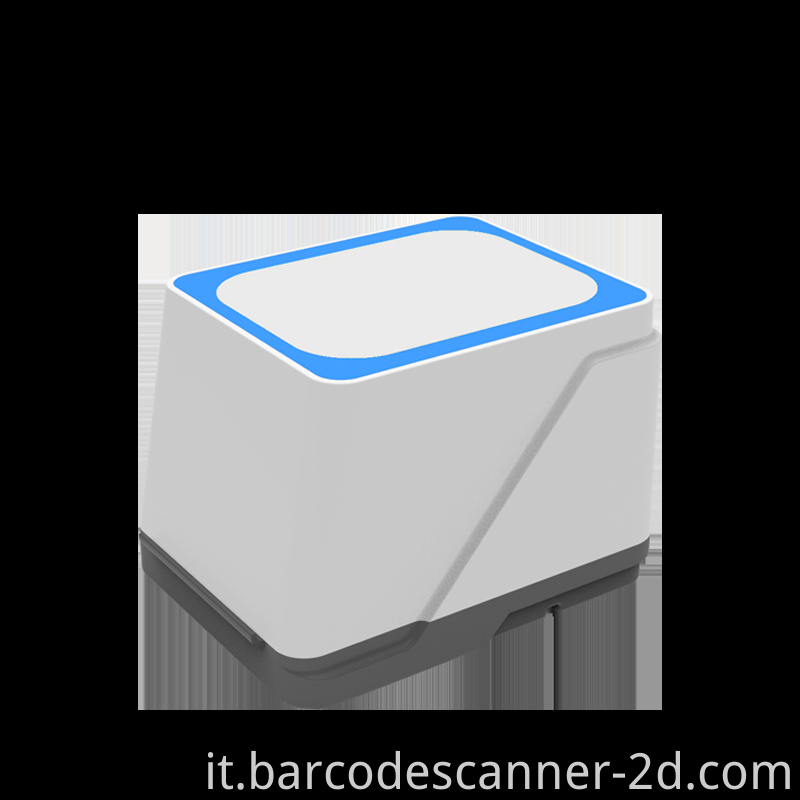

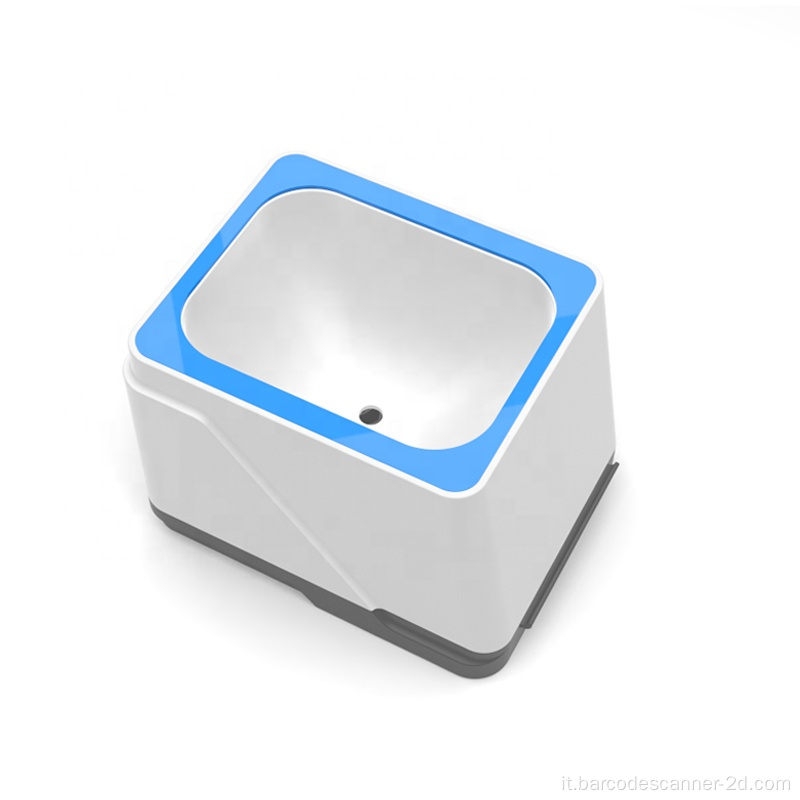

Winson WAI-1318 2D CODE SCANNER AUTO SENSING AUTO DESKTOP CODE SCANNER per Supermarket Chain Store
Desktop QR Code Reader incorporato scanner 2D, altoparlanti laterali
Codice Codice Due Codice QR Desktop Reader La scansione di rilevamento automatico risparmia l'alimentazione e il tempo-Quando il codice a barre del prodotto passa attraverso la finestra di scansione, il modulo si sveglia per leggere immediatamente il codice a barre.
|
Technical Specifications |
|
|
Electrical Characteristics |
|
|
Interface Supported |
USB HID KEYBOARD/USB VCP/RS-232 |
|
Input Voltage |
DC 5V±10% |
|
Current |
Max:190mA |
|
Optical Characteristics |
|
|
Image Sensor |
CMOS Array Sensor |
|
Sensor Resolution |
640X480 Pixels |
|
Light Source |
White LED |
|
Performance Characteristics |
|
|
Scanning Angle |
Pitch angle:±45°;Skew angle:±50°;Tilt angle:±180° |
|
Field of View |
53°(H),40°(V) |
|
Min Resolution |
10mil |
|
Min .PCS value |
>30% UPC/EAN 13(13mil) |
|
Language |
Multiple Languages |
|
Decode Capability |
1D: Code128,GS1-128,AIM-128,EAN-8,EAN-13,ISSN,ISBN,UPC-A,UPC-E,Interleaved 2 of 5(ITF),Matrix 2 of 5,Industrial 2 of 5,Standard 2 of 5,Code93,Code11,Code39,Codabar,GS1-Databar(RSS),Plessey,MSI-Plessey 2D:QR Code,Data Matrix,PDF417 |
|
Physical Characteristics |
|
|
Dimensions |
110mm*84mm*75mm(L*W*H) |
|
Weight |
200g |
|
Indicator |
Beeper, LED |
|
Environmental Characteristics |
|
|
Temperature |
0° to 50°C / 32° to 122°F(operation) /-10° to 60°C /14° to 140°F(storage) |
|
Humidity |
20 - 85% (operation) ) 20 - 90% (storage) |
|
Shock Drop Test |
1.2m drop onto concrete surface |
