Lettore Wireless 2.4G Wireless CMOS 2D

$351-49 Others

$2950-199 Others

$25≥200Others

Tipo di pagamento:	L/C,T/T,D/P,D/A,Paypal,Others
Incoterm:	FOB,CIF,EXW,DDP
Trasporti:	Ocean,Land,Air,Express,Others
Porta:	guangzhou

Option:

WNI-6712/V

contattaci ora

Descrizione del prodotto

Caratteristiche del prodotto

Confezionamento e consegna

Descrizione del prodotto

Caratteristiche del prodotto

Modello: WNI-6712/V

marchio: Winson

Certificazione: ce

Stato Del Prodotto: Azione

Tipi Di: Scanner di codici a barre

Tipo Di Elemento Di Scansione: CMOS

Punto Di Colore: 32 bit

Tipo Di Interfaccia: USB

Luogo D'origine: Cina

Periodo Di Garanzia (anni): 1 anno

Assistenza Post-vendita: Call Center e supporto tecnico in linea

Products Status: Stock

Type: Barcode Scanner

Scan Element Type: Cmos

Colour Depth: 16 Bit

Interface Type: Usb

Max Paper Size: N/A

Optical Resolution: 648 X 488 Pixels

Scan Speed: 30 fps

Brand Name: Winson

Place Of Origin: Guangdong, China

Warranty(Year): 1-Year

After-sales Service: Call Center And On-Line Technical Support

Interface: USB HID KEYBOARD(Wireless receiver)

Photo Sensor: CMOS array sensor

Voltage Requirement: DC5V±10%

Battery Capacity: 1500mah

Charging Time: 4.5H

Min Resolution: 1D≥4mil,2D≥10mil

Min.PCS Value: >15%UPC/EAN 13(13mil)

Dimension (L*W*H): 95mm*67mm*168mm(L*W*H)

Weight: 186

Sertifikasi: Ce, Rohs

Confezionamento e consegna

Unità vendibili	:	unit
Tipo pacchetto	:	BOX BOX BOX o imballaggio personalizzato (negoziato) 1pcs/scatola, 20/50pcs/cartone
Esempio immagine	:

The file is encrypted. Please fill in the following information to continue accessing it

Descrizione del prodotto

Supportare lo scanner CCD a barre CCD RS232, USB, TTL, Micro USB.

Con mini ricevitore USB, plug and play, design ergonomico, comodo per contenere un piccolo modulo scanner a codici a barre .

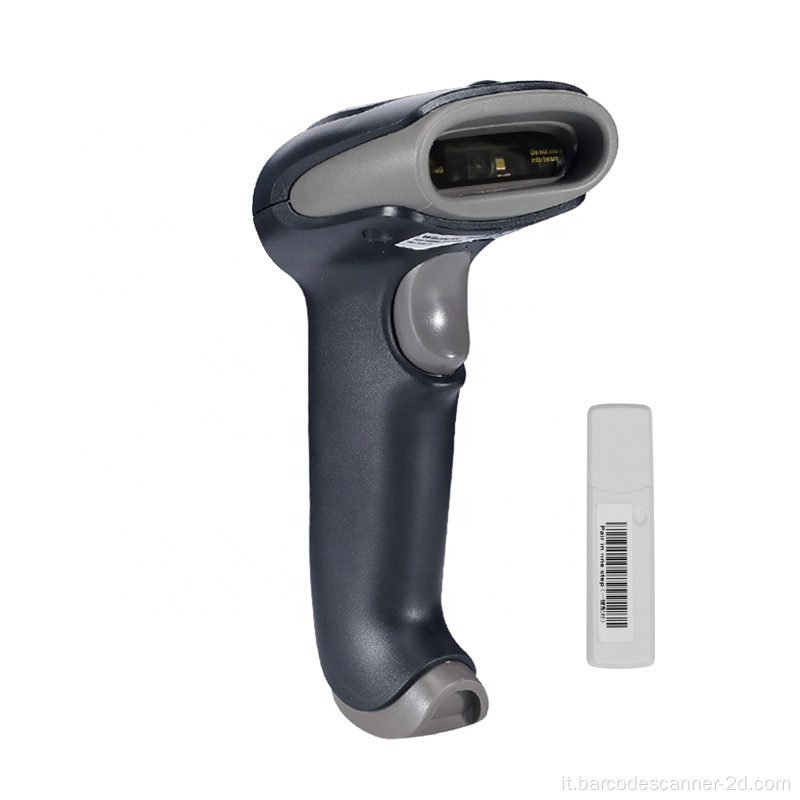

Winson WNI-6712/V Handheld Barcode Scanner CMOS 2D Wireless 2.4G Lettore di codice a barre ampia portata

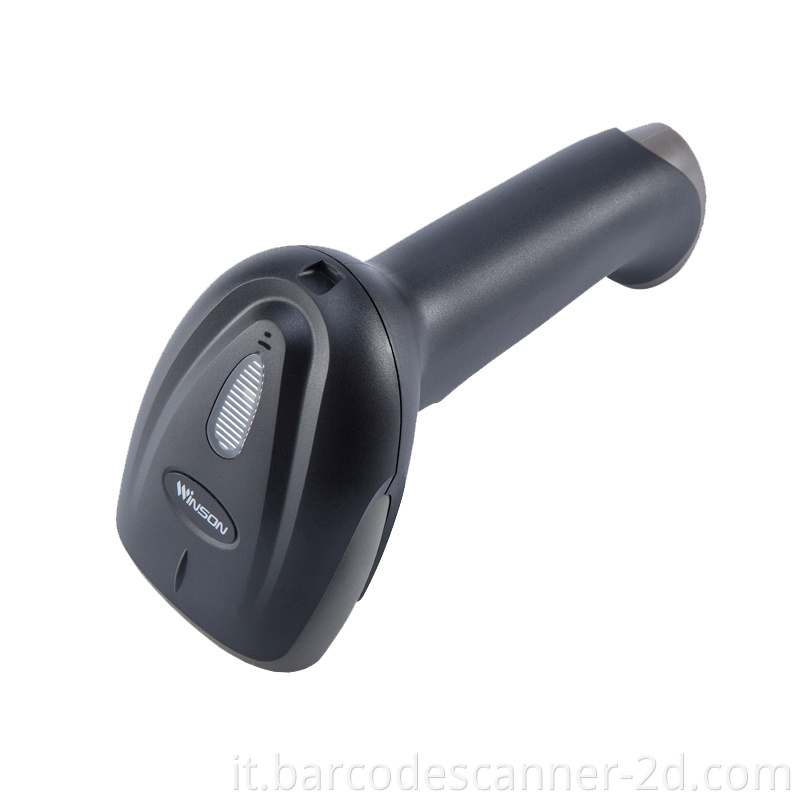

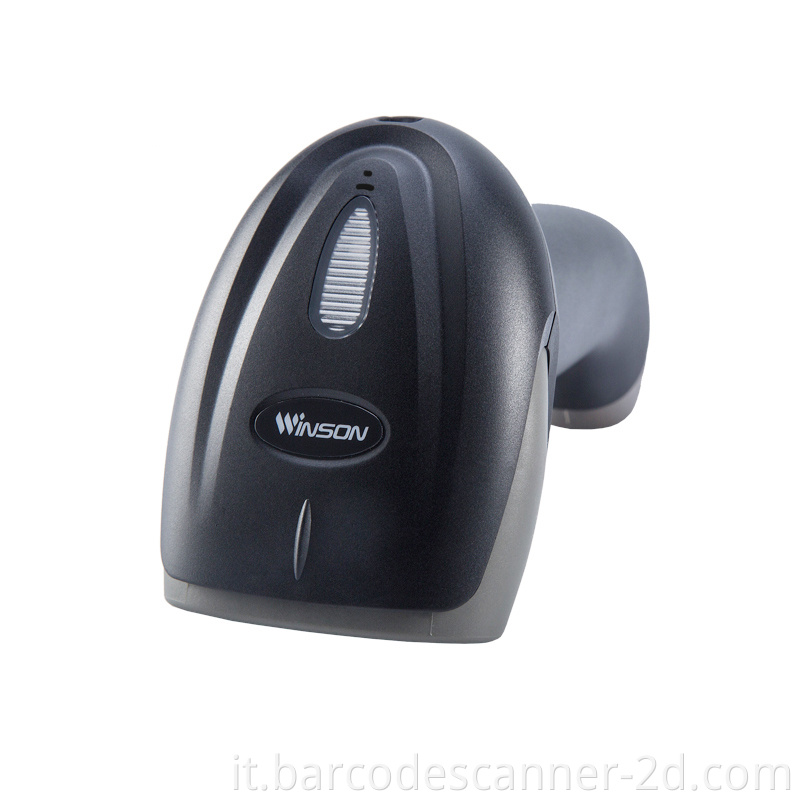

Wireless 2.4G Reader

winson company

Dettagli del prodotto

Technical Parameters
Electrical Characteristics
Interface	USB HID KEYBOARD(Wireless receiver)
Current consumption	Max:120mA,Min:50mA
Optical Characteristics

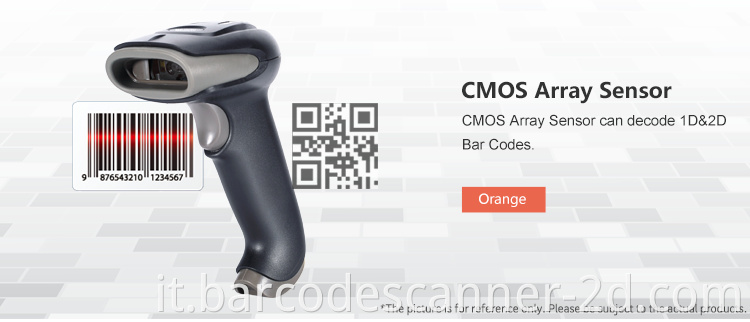

Photo sensor	CMOS array sensor
Sensor Resolution	648x488 Pix
Light source	White LED*1
Aim light source	Red Bar led
Performance Characteristics
Decode angle	Pitch angle:±60° Skew angle:±60° Tilt angle:±180°
Field of View	46°(H),35°(V)
Min resolution	1D≥4mil 2D≥10mil
Min.PCS value	>15%UPC/EAN 13(13mil)
Language	Multiple languages
Identification	1D: Codabar,Code128,Code11,Code32,Code39,Code93,Composite,EAN/UPC,EAN-8,EAN-13,GS1 DataBar Expanded,GS1 DataBar Limited,GS1 DataBar Omnidirectional,Hong Kong 2 of 5(China Post),Interleaved 2 of 5,Matrix 2 of 5,Pharmacode.RSS-14,RSS-LIMITED,RSS-EXPANDED,Industrial 2 of 5,Telepen,Trioptic Code, UPC-A,UPC-E 2D:Aztec Code,Codablock F,DOT_CODE, HANXIN, Maxicode,MicroPDF417,Micro QR Code,MSI,PDF417,QR Code, DataMatrix
Physical Characteristics
Dimensions	95mm×70mm×168mm(L x W x H) Receiver:83mm18mm13mm(LWH)

Weight	Scanner:186g Receiver:16g
Environmental Characteristics
Temp	0° to 50°C / 32° to 122°F(operation) /-10° to 60°C /14° to 140°F(storage)
Humidity	20 - 85% (operation) ) 20 - 95% (storage)
Ambient Light	fluorescent light 4000 lx max , direct sun light 80,000 lx max ,white light 4000 lx max

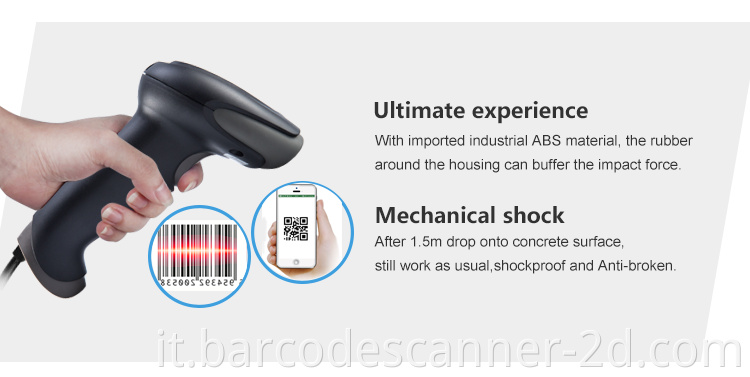

Shock drop test	1.5m drop onto concrete surface
