Guangzhou Winson Information Technology Co., Ltd.
$291-49 Others
$2550-199 Others
$23≥200Others
| Tipo di pagamento: | L/C,T/T,D/P,D/A,Paypal,Others |
| Incoterm: | CIF,EXW,DDP |
| Trasporti: | Ocean,Land,Air,Express,Others |
| Porta: | guangzhou |
Modello: WNC-5060g
marchio: Winson
Certificazione: ce, altro
Stato Del Prodotto: Azione
Tipi Di: Scanner di codici a barre
Tipo Di Elemento Di Scansione: CCD
Punto Di Colore: 32 bit
Tipo Di Interfaccia: USB
Luogo D'origine: Cina
Periodo Di Garanzia (anni): 1 anno
Assistenza Post-vendita: Call Center e supporto tecnico in linea
Products Status: Stock

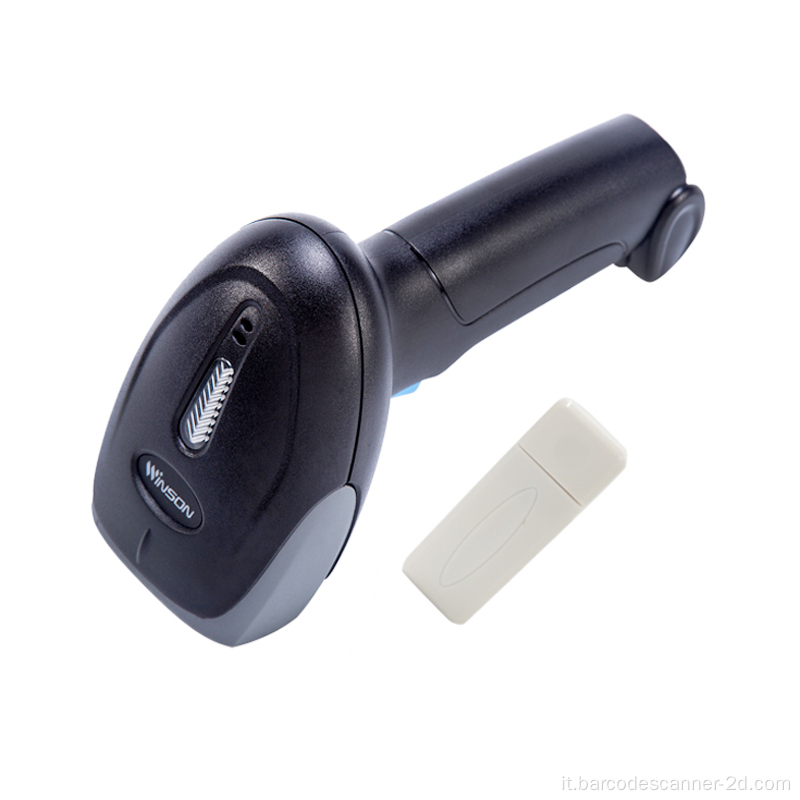

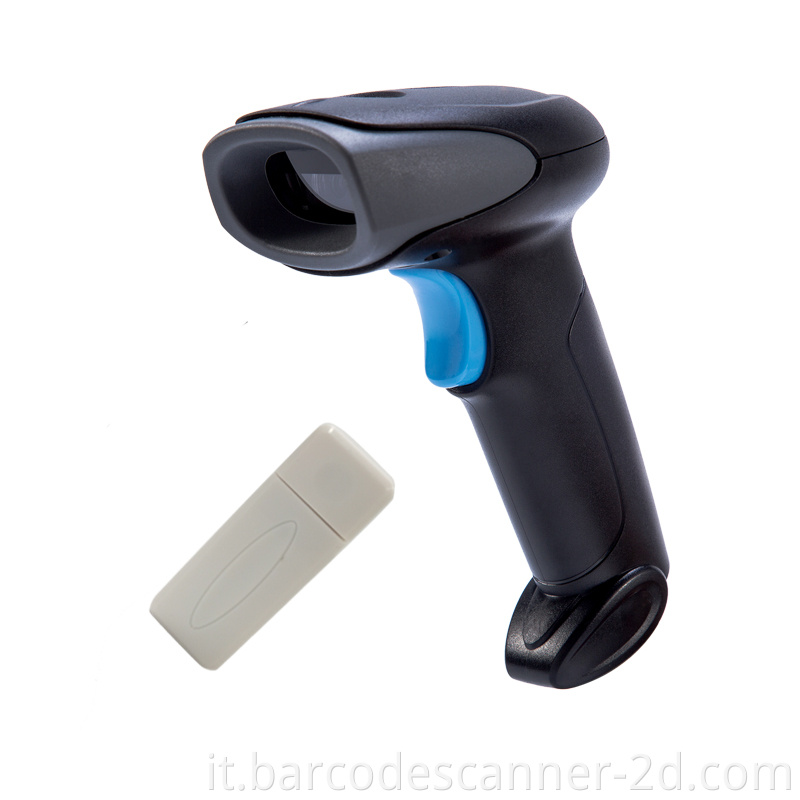

Type: Wireless 1D Scanner
Scan Element Type: CCD Barcode Scanner
Colour Depth: 32 Bit
Interface Type: usb, COM, PS/2
Max Paper Size: N/A
Optical Resolution: 1500 pix
Scan Speed: 350+50(scans/second)
Brand Name: Winson
Place Of Origin: Guangdong, China
Warranty(Year): 1-Year
After-sales Service: Call Center And On-Line Technical Support
Nome prodotto: Wireless 1D Scanner
Product Type: 1D CCD Barcode Scanner
Photo Sensor: CCD linear sensor
Communications: Wired transmission mode
Communication Frequency: BT 4.0
Voltage Requirement: 5VDC±10%
Print Contrast: 20%UPC/EAN 13(13mil)
Current: Max:135mA
Light Source: 632nm red LED
Dimensions: 90mm*67mm*168mm
| Unità vendibili | : | unit |
| Tipo pacchetto | : | Imballaggio personalizzato (negoziato) |
The file is encrypted. Please fill in the following information to continue accessing it
Campi applicazioni 2D CMOS CODE SCANNER APPLICAZIONE: armadietti, armadietti del supermercato, macchina per biglietti, distributore automatico self-service, mobile espresso intelligente, chiosk, armadietti, macchina di controllo degli accessi, negozio self-service, macchina del check-in, bancone, assemblaggio di fabbrica Linea, logistica, ospedale, PDA, ecc.
Codice a barra a mano bianca nera rapida Lettore 1D Laser USB Wried Barcode Scanner Modulo Scanner
Supportare lo sviluppo secondario: l'istruzione di sviluppo della porta seriale è completa per soddisfare ogni tipo di domanda interattiva di controllo del computer host.
Con mini ricevitore USB, plug and play, design ergonomico, comodo da contenere il modulo scanner QR .
|
Technical Specifications |
|||||||
|
Wireless specifications |
|||||||
|
Communication mode |
Wired transmission mode/ Wireless Read-time mode&Inventory mode/Cache mode |
||||||
|
Communication frequency |
BT 4.0(2.402 to 2.480GHz Adaptive frequency hopping) |
||||||
|
Transmission range |
≤10M(In empty area 15M) |
||||||
|
Battery capacity |
1500mAh (Lithium battery) |
||||||
|
Charge Time from Empty to Full Charge |
4.5H |
||||||
|
Scans per Battery Charge |
30,000 (1 scan per second) |
||||||
|
Memory |
100,000@13Byte barcode |
||||||
|
Electrical Characteristics |
|||||||
|
Interface Supported |
USB HID KEYBOARD |
||||||
|
Input Voltage |
DC 5V±10% |
||||||
|
Current |
Max:135mA |
||||||
|
Optical Characteristics |
|||||||
|
Image Sensor |
CCD Linear Sensor |
||||||
|
Sensor Resolution |
2500pixels |
||||||
|
Light Source |
632nm Red LED |
||||||
|
Performance Characteristics |
|||||||
|
Decoding rate: |
350 scans/second±20 scans/second |
||||||
|
Scanning Angle |
Pitch angle:±35°;Skew angle:±75°;Tilt angle:±40° |
||||||
|
Min Resolution |
0.105/4mil(PCS 0.9) |
||||||
|
Min .PCS value |
>25%UPC/EAN 13(13mil) |
||||||
|
Language |
Multiple Languages |
||||||
|
Data Edition |
Support for custom data output |
||||||
|
Decode Capability |
EAN13,EAN8,UPC A,UPC E,CODABAR(NW-7),CODE 39,CODE 93,INTERLEAVED 2OF5,STANDARD 2OF5,MATRIX 2OF5,CODE 128,EAN/UCC 128,CODE 11,CHINESE POST |
||||||
|
Physical Characteristics |
|||||||
|
Dimensions |
Scanner:90mm*67mm*168mm(L*W*H) |
||||||
|
Weight |
Scanner:160g |
||||||
|
Indicator |
Beeper, LED |
||||||
|
Environmental Characteristics |
|||||||
|
Temperature |
-20° to 65°C / -4° to 149°F(operation) /-30° to 70°C /-22° to 158°F(storage) |
||||||
|
Humidity |
5 - 90% (operation) ) 5 - 90% (storage) |
||||||
|
Ambient Light: |
Up to 80,000 lx |
||||||
|
Shock Drop Test |
1.5m drop onto concrete surface |
||||||
