Guangzhou Winson Information Technology Co., Ltd.
$164.51-49 Others
$145.550-199 Others
$130.5≥200Others
| Tipo di pagamento: | L/C,T/T,D/P,D/A,Paypal,Others |
| Incoterm: | FOB,CIF,EXW,DDP,CFR |
| Trasporti: | Ocean,Land,Air,Express,Others |
| Porta: | guangzhou |
Modello: MK20-980
marchio: Winson
Certificazione: ce, altro
Stato Del Prodotto: Azione
Tipi Di: Scanner di codici a barre
Tipo Di Elemento Di Scansione: CCD, CMOS
Punto Di Colore: 32 bit
Tipo Di Interfaccia: USB
Luogo D'origine: Cina
Periodo Di Garanzia (anni): 1 anno
Assistenza Post-vendita: Call Center e supporto tecnico in linea
Private Mold: Yes
Products Status: Stock
Type: Barcode Scanner
Scan Element Type: Cmos
Colour Depth: 32 Bit
Interface Type: usb, TTL-232
Max Paper Size: N/A
Optical Resolution: 800*1000 pix
Scan Speed: 350±50 (scans/second)
Brand Name: Winson
Place Of Origin: Guangdong, China
Warranty(Year): 1-Year
After-sales Service: Call Center And On-Line Technical Support
Software Development Kit (SDK): NO
Nome prodotto: embedded in Barcode scan Module
Interface: USB/RS-232
Photo Sensor: CMOS array sensor
Voltage / Current: DC 5V; Max 224ma
Dimensions (W X D X H): 100 mmx82mmx34mm
Weight: 128g
Sertifikasi: Ce, Rohs
| Unità vendibili | : | unit |
| Tipo pacchetto | : | BOX BOX BOX OFFACCHIO O INCCOLTUZIONE DELLE |
| Esempio immagine | : |
|
The file is encrypted. Please fill in the following information to continue accessing it
Scanner con supporto laser Sviluppo secondario - L'istruzione di sviluppo della porta seriale è completa per soddisfare ogni tipo di domanda interattiva di controllo del computer host.
Lo scanner di codici a barre stazionari 2D può essere personalizzato in base alla domanda dei clienti.

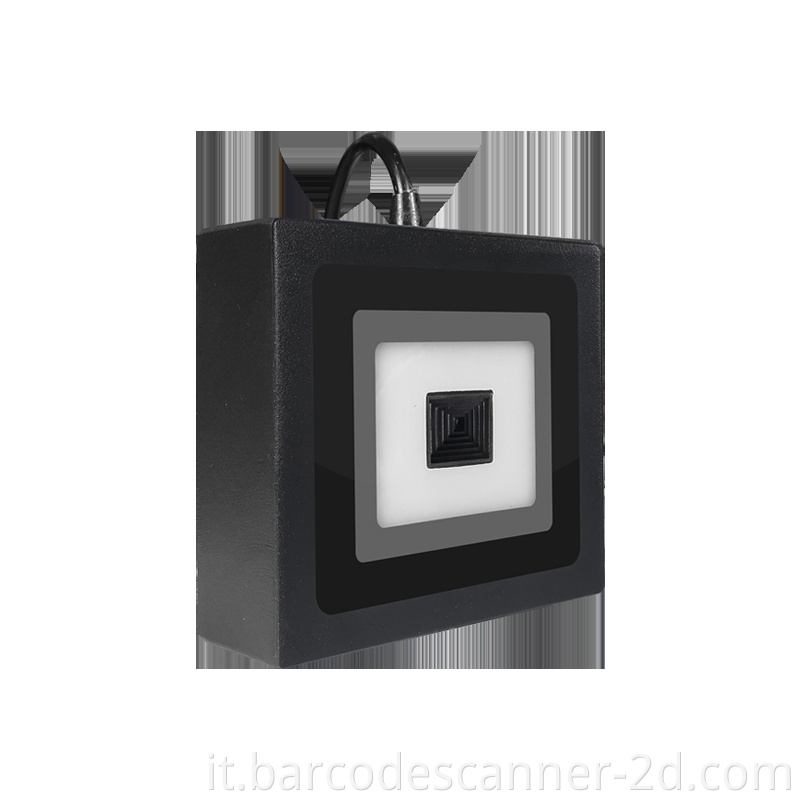

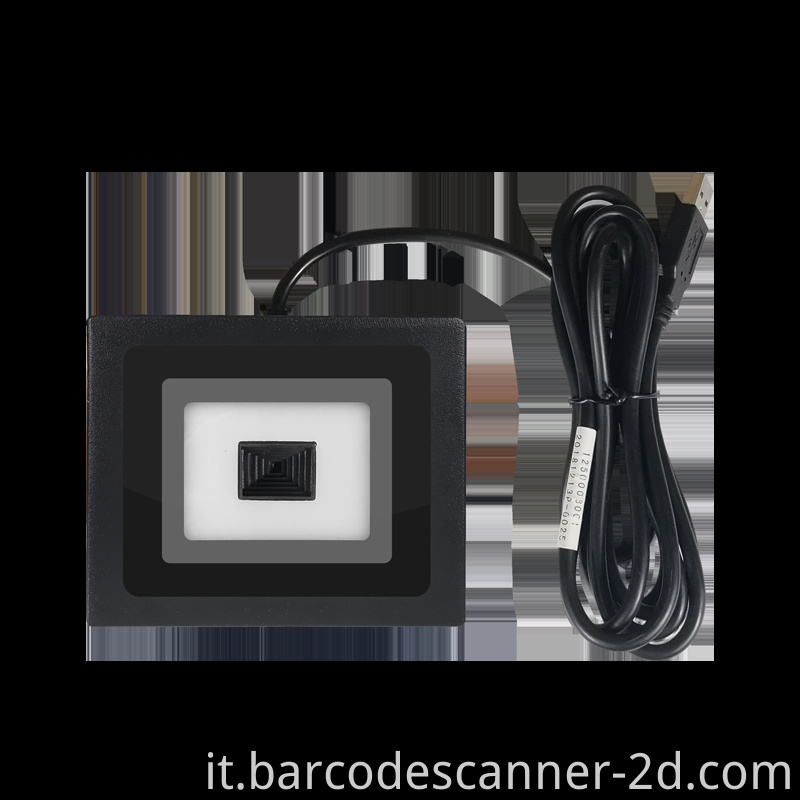

Winson MK20-980 Modulo scanner a barre per kiosk a lunga distanza lettore
|
Technical Specifications |
||||||
|
Electrical Characteristics |
||||||
|
Interface Supported |
USB HID KEYBOARD; RS232; |
|||||
|
Input Voltage |
DC 5V±10% |
|||||
|
Current |
Max:224mA |
|||||
|
Optical Characteristics |
||||||
|
Image Sensor |
CMOS Array Sensor |
|||||
|
Sensor Resolution |
1280X800 Pixels |
|||||
|
Performance Characteristics |
||||||
|
Field of View |
36°(H),23°(V) |
|||||
|
Reading accuracy |
≥10 mil |
|||||
|
Language |
Multiple Languages |
|||||
|
Data Edition |
Support for custom data output |
|||||
|
Decode Capability |
1D: Code 128, Code 93, Code 39, ITF-6, ITF-14, Interleaved of 5, Industrial 2 of 5, Matrix 2 of 5, Standard 2 of 5, GS1 Databar, EAN-13, Code 11, MSI-PLESSEY,Code 11,PLESSEY,EAN-8,UPC-E,ISBN,CODEBAR 2D:QR Code |
|||||
|
Physical Characteristics |
||||||
|
Dimensions |
100mm*82mm*34mm(L*W*H) |
|||||
|
Weight |
128g |
|||||
|
Indicator |
Beeper, LED |
|||||
|
Environmental Characteristics |
||||||
|
Temperature |
0° to 50°C (operation) /-5° to 55°C (storage) |
|||||
|
Humidity |
20 - 85% (operation) ) 20 - 90% (storage) |
|||||
|
Shock Drop Test |
1.5m drop onto concrete surface |
|||||
|
Decoding Depth of Field |
||||||
|
Symbology |
Resolution |
texture |
Barcode width |
Nearest |
Farthest |
|
|
QR Code |
44.17mil |
On the screen |
2.3 x 2.3cm |
5cm |
100cm |
|
|
QR Code |
77.50mil |
On the screen |
4.0 x 4.0cm |
11cm |
180cm |
|
|
Code 39 |
15.83mil |
On the screen |
5.3 x 1.5cm |
4cm |
60cm |
|
|
Code 128 |
19.58mil |
On the screen |
6.8 x 2.0cm |
5cm |
85cm |
|
