Lettore di codice QR 1D 2D per Mini Kiosk

Lettore di codice QR 1D 2D per Mini Kiosk

$25.51-49 Others

$23.550-199 Others

$20.5≥200Others

Tipo di pagamento:	L/C,T/T,D/P,Paypal
Incoterm:	FOB,CIF,EXW,DDP
Trasporti:	Ocean,Land,Air,Express
Porta:	guangzhou

Option:

WDI-2010

contattaci ora

Descrizione del prodotto

Caratteristiche del prodotto

Confezionamento e consegna

Descrizione del prodotto

Caratteristiche del prodotto

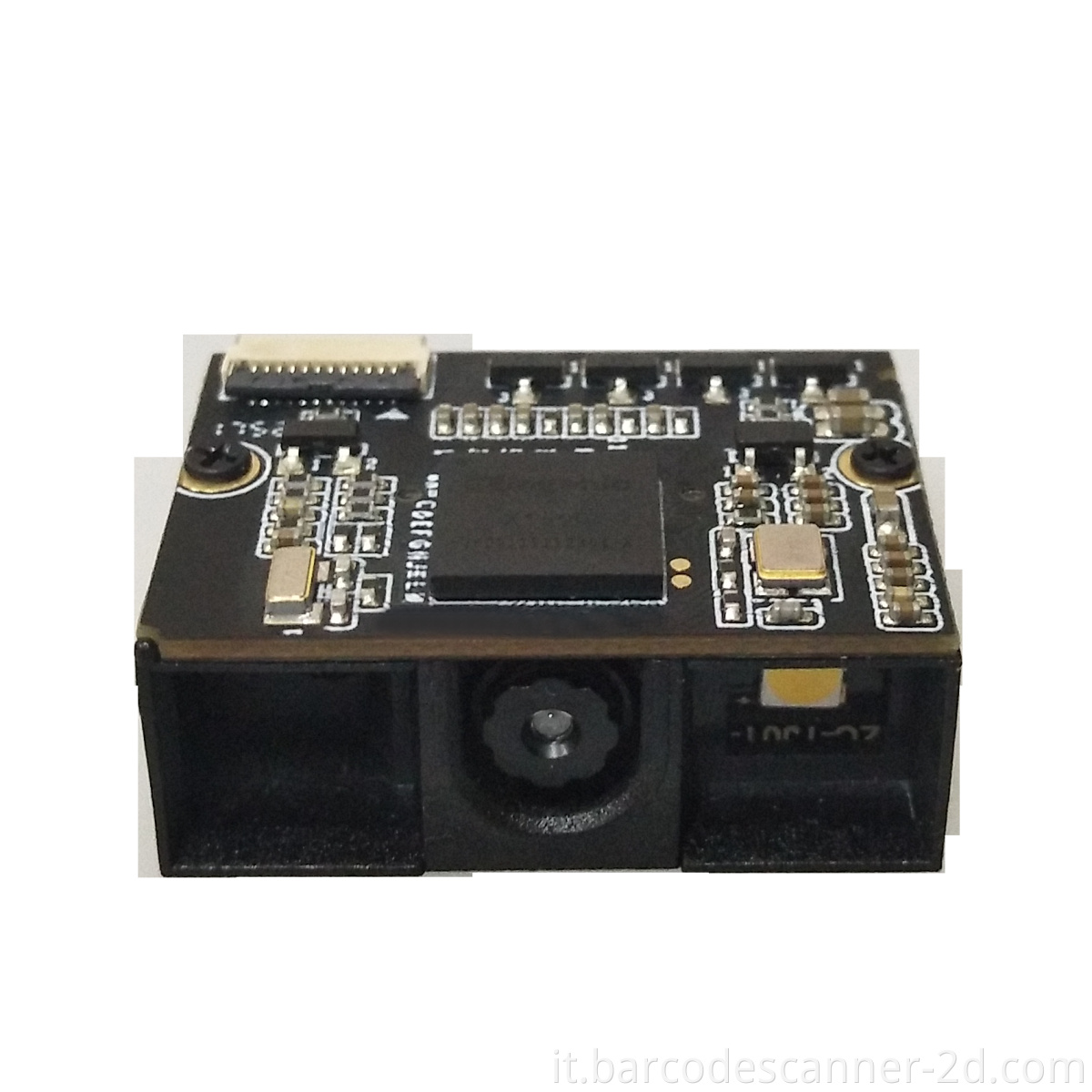

Modello: WDI-2010

marchio: Winson

Private Mold: Yes

Products Status: Stock

Type: CCD Bar Code Scanner Engine

Scan Element Type: Ccd

Colour Depth: 32 Bit

Interface Type: usb, SCSI, IEEE 1394, COM, PS/2, Other

Max Paper Size: N/A

Optical Resolution: 2500pix

Scan Speed: 350±50 (scans/second)

Brand Name: Winson

Place Of Origin: Guangdong, China

Warranty(Year): 1-Year

After-sales Service: Call Center And On-Line Technical Support

Software Development Kit (SDK): NO

Color: Black

Nome prodotto: CCD Bar Code Scanner Engine

Interface: TTL-232/USB

Photo Sensor: CCD linear sensor

Voltage Requirement: DC 3.3/5V±10%

Current Consumption: Max:120mA

Lingua: Multiple languages

Dimensions: 21mm x 23mm x 11mm(W x D x H)

Weight: 6g

Configurations: Decode

Sertifikasi: Ce,Rohs

Confezionamento e consegna

Unità vendibili	:	unit
Tipo pacchetto	:	Imballaggio personalizzato (negoziato)

The file is encrypted. Please fill in the following information to continue accessing it

Descrizione del prodotto

Support Secondary, forniamo SDK.
Con USB, interfacce TTL per l'opzione

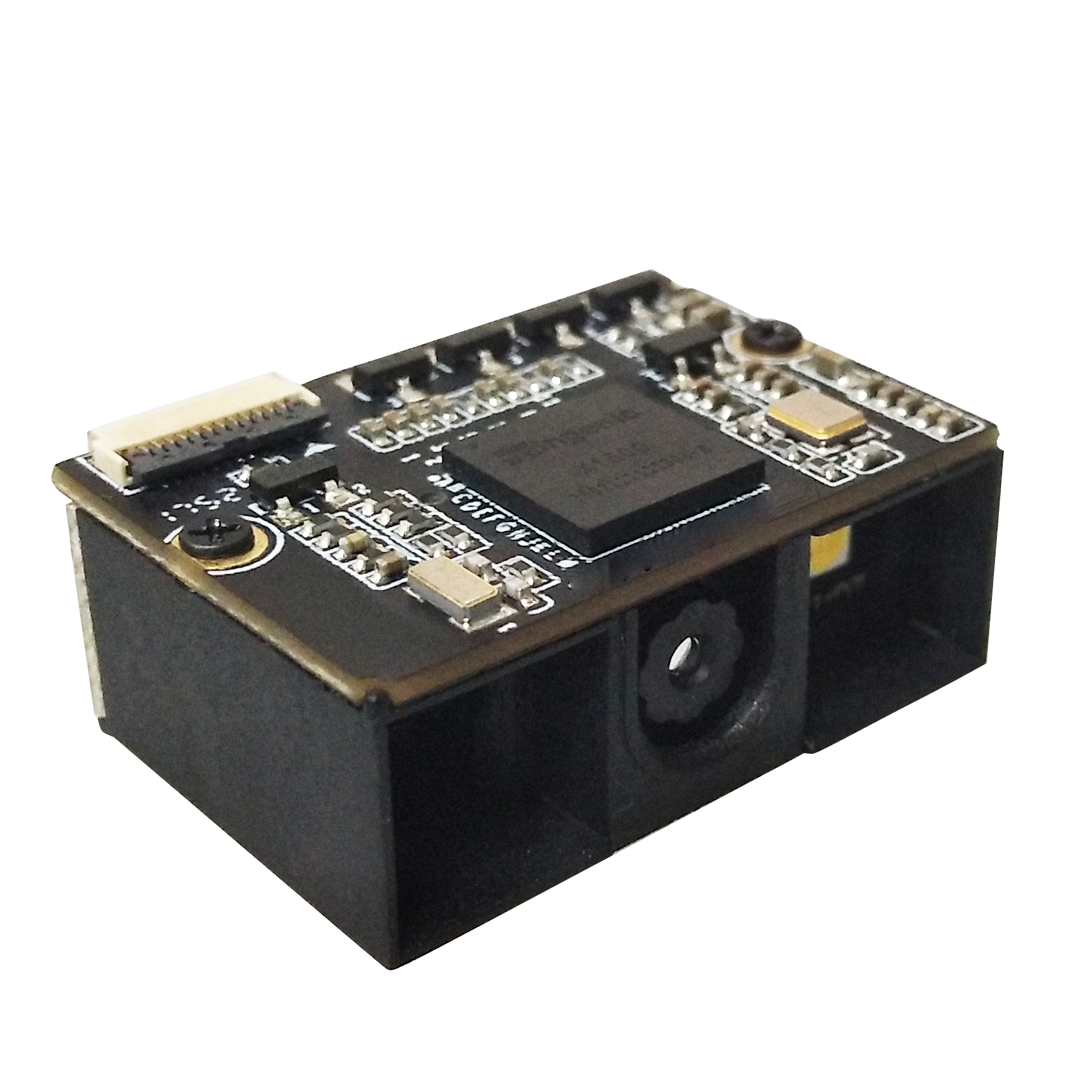

Mini Modulo di scansione automatica Modulo scanner a barre incorporato il lettore di codice QR 1D 2D per Mini Kiosk

Caratteristiche

1.Winson WDC-3000 CCD Bar Code Scanner Engine Small Code Reader Module OEM.

2.Support read poorly printed, damaged, low contrast, wide or high-density codes...

3.Support add a prefix/suffix, delete the last four characters, interlaced upload data...

4.OEM applications:vending machine, payment terminal machine, locker, banking machine, packing machine.

Descrizione del prodotto

1d 2d Qr Code Reader For mini kiosk

Better scanning performance 32-bit CPU, scanning code speed up to 350 scans per second. Support bidirectional scanning Accurate scanning, the error rate is 1 / 5,000,000.


Compatibility Compatible with the current system used by the general public, such as Windows,Android, Mac OS,IOS,Linux,and so on.	Mechanical Shock After 1.0m drop onto concrete surface, still work as usual,shockproof and Anti-broken.

Dettagli del prodotto

Technical Parameters
Electrical Characteristics

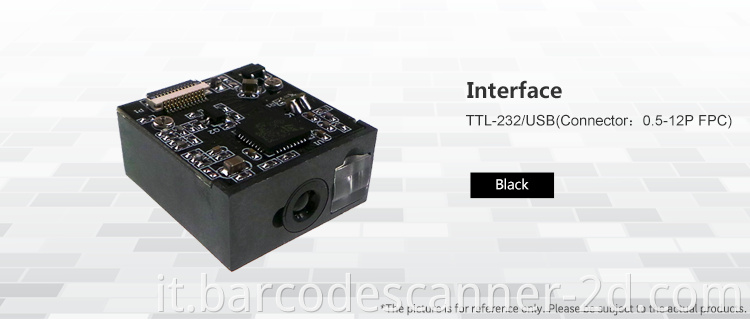

Interface	TTL-232/USB
Interface connector	0.5-12P FPC
Voltage requirement	DC 3.3/5V±10%
Current consumption	Max:120mA
Optical Characteristics
Photo sensor	CCD linear sensor
Sensor Resolution	2500pix
Light source	632nm red led
Performance Characteristics
Scan Rate	350±50 (scans/second)
Decode angle	Pitch angle:±30° Skew angle:±70° Tilt angle:±45°
Min resolution	0.127mm/5mil(PCS 0.9)
Min.PCS value	>25%UPC/EAN 13(13mil)
Curvature	R≥15 mm (EAN8),R≥20 mm (EAN13) (resolution=0.26mm,PCS=0.9)

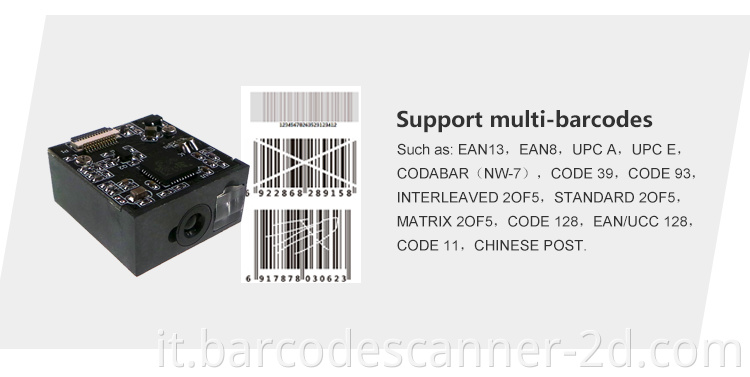

Identification	EAN13,EAN8,UPC A,UPC E,CODABAR(NW-7),CODE 39,CODE 93,INTERLEAVED 2OF5,STANDARD 2OF5,MATRIX 2OF5,CODE 128,EAN/UCC 128,CODE 11,CHINESE POST
Regulatory
Electrical Safety	UL 60950,EN/IEC 60950
EMI/RFI	FCC Part 15 Class B,EN 55024/CISPR 22
Environmental	RoHS
Physical Characteristics
Dimensions	23 mm x 21 mm x11mm(LWH)
Weight	6g
Configurations	Decode
Environmental Characteristics
Temp	-0°-65°C / 32°-149°F(operation) -30°- 70°C /-22°-158°F(storage)
Humidity	5 - 90% (operation) 5 - 90% (storage)
Ambient Light	Fluorescent light 4000 lx max , direct sun light 80,000 lx max ,white light 4000 lx max
Shock drop test	1.2m drop onto concrete surface
