Scanner POS CODICO POS CODE POSSO PRODUCIO 2D
Scanner POS CODICO POS CODE POSSO PRODUCIO 2D
Scanner POS CODICO POS CODE POSSO PRODUCIO 2D
Scanner POS CODICO POS CODE POSSO PRODUCIO 2D
Scanner POS CODICO POS CODE POSSO PRODUCIO 2D

Scanner POS CODICO POS CODE POSSO PRODUCIO 2D

$58.52-99 Others

$50.5100-999 Others

$39.9≥1000Others

Tipo di pagamento:L/C,T/T,D/P,D/A,Paypal,Others
Incoterm:FOB,CFR,CIF,EXW,DDP
Trasporti:Ocean,Land,Air,Express,Others
Porta:guangzhou
Option:
Caratteristiche del prodotto

ModelloWNI-9610

marchioWinson

Certificazionece

Stato Del ProdottoAzione

Tipi DiScanner di codici a barre

Tipo Di Elemento Di ScansioneCCD

Punto Di Colore32 bit

Tipo Di InterfacciaUSB

Luogo D'origineCina

Periodo Di Garanzia (anni)1 anno

Assistenza Post-venditaCall Center e supporto tecnico in linea

Products StatusStock

TypeBarcode Scanner

Scan Element TypeCmos

Colour Depth16 Bit

Interface TypeUsb, Rs232

Max Paper SizeN/A

Optical Resolution640X480 pixels

Scan Speed60

Brand NameWinson

Place Of OriginGuangdong, China

Warranty(Year)1-Year

After-sales ServiceCall Center And On-Line Technical Support

Interface SupportedUSB HID KEYBOARD/USB VCP or RS-232

Input VoltageDC 5V±10%

Current32a / 63a / 80a / 100a

Image SensorCMOS Array Sensor

Sensor Resolution640X480 Pixels

Light SourceWhite Led

Min ResolutionSR:0.127/5mil(PCS 0.9)

SertifikasiCe

Confezionamento e consegna
Unità vendibili : piece

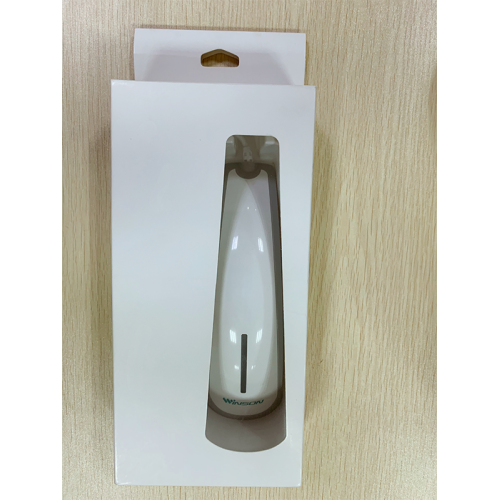

Tipo pacchetto : Imballaggio personalizzato (negoziato)
Esempio immagine :

The file is encrypted. Please fill in the following information to continue accessing it

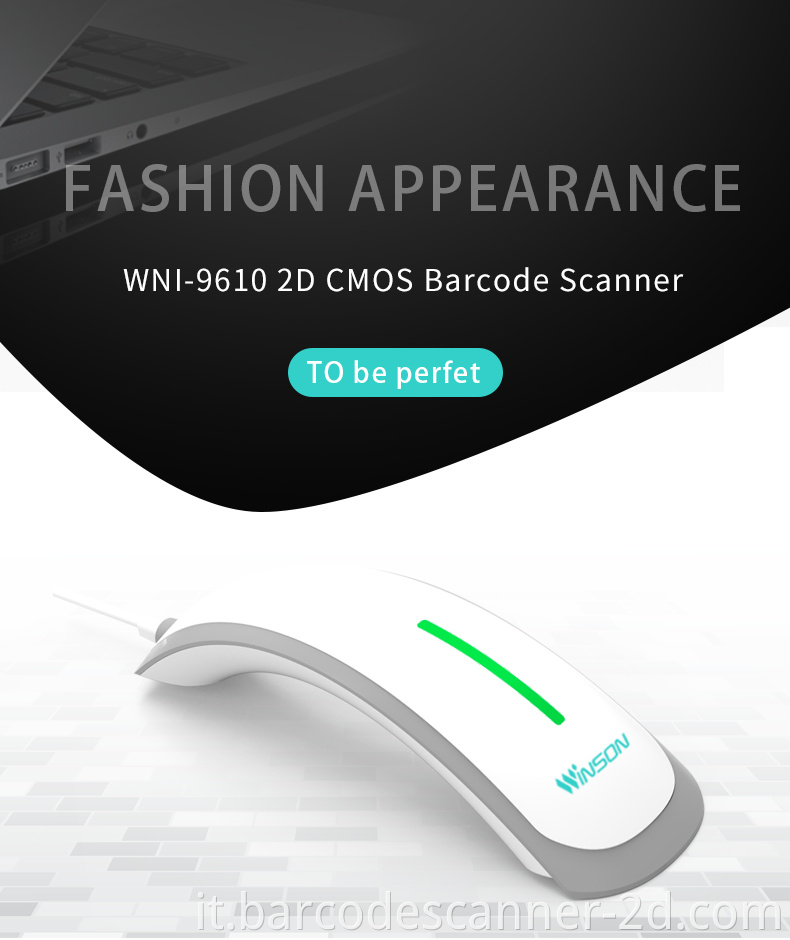

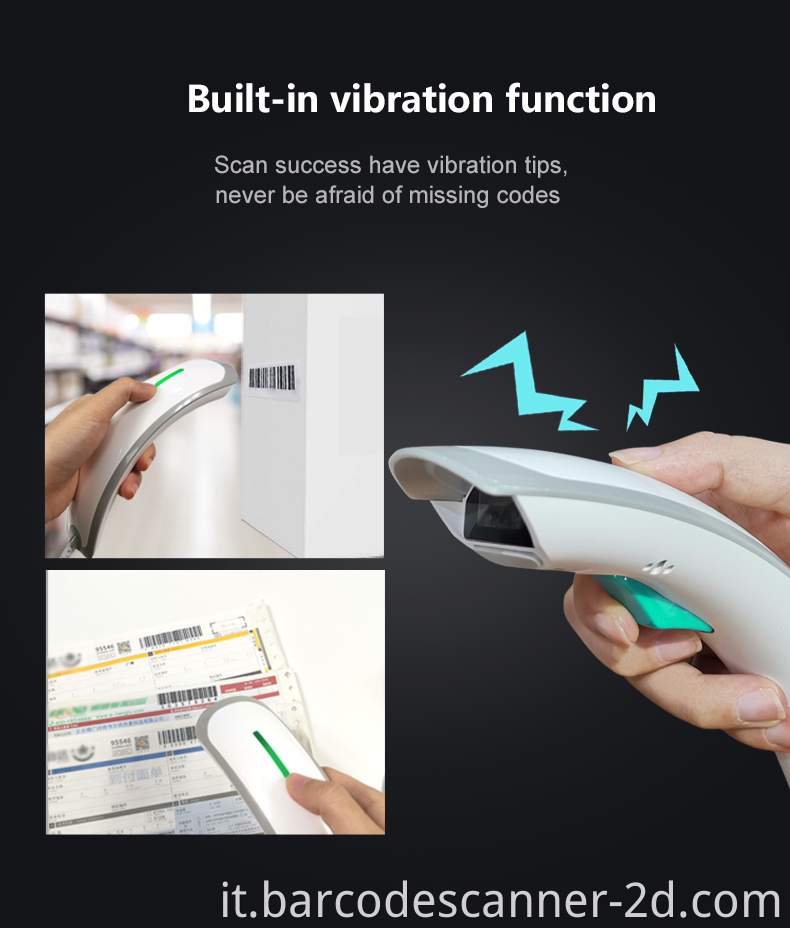

Winson WNI-9610 Nuovo Stile Prodotto 2D CMOS CODE Scanner POS QR Codice Scanner1
Descrizione del prodotto


Barcode Scanner



Barcode ScannerWinson WNI-9610 Nuovo Stile Prodotto 2D CMOS CODE SCANNER POS QR Codice ScannerBarcode ScannerWinson WNI-9610 Nuovo Stile Prodotto 2D CMOS CODE SCANNER POS QR Codice ScannerWinson WNI-9610 Nuovo Stile Prodotto 2D CMOS CODE SCANNER POS QR Codice ScannerBarcode ScannerWinson WNI-9610 Nuovo Stile Prodotto 2D CMOS CODE SCANNER POS QR Codice ScannerWinson WNI-9610 Nuovo Stile Prodotto 2D CMOS CODE SCANNER POS QR Codice Scanner





Barcode Scanner

Winson WNI-9610 Nuovo Stile Prodotto 2D CMOS CODE SCANNER POS QR Codice Scanner


winson company

Dettagli del prodotto


Technical Parameters

Electrical Characteristics

Interface

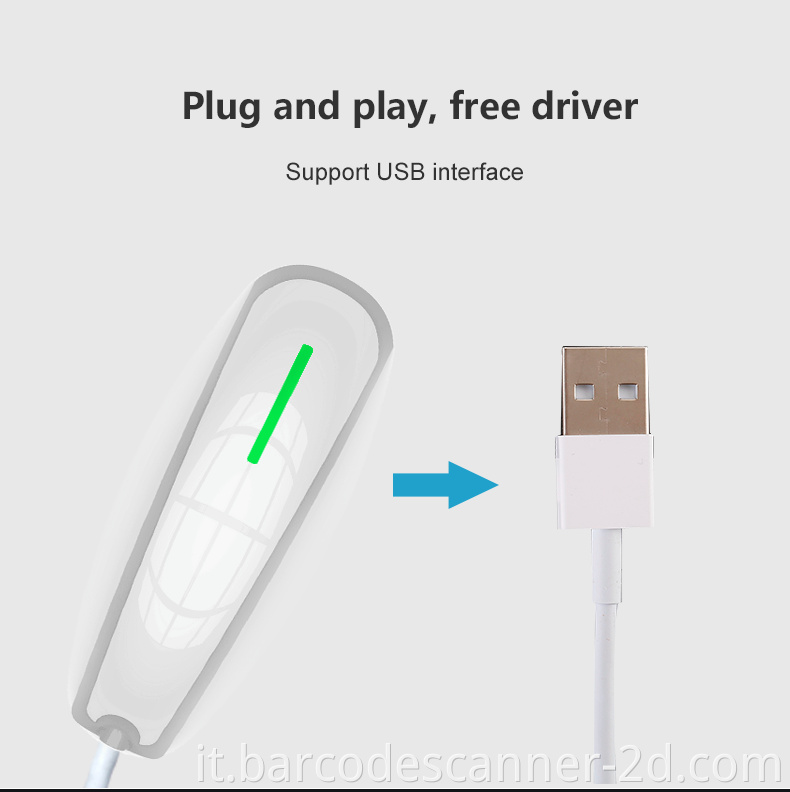

RS-232/USB HID KEYBOARD/USB VCP

Voltage requirement

DC5V±10%

Current consumption

Max :500mA

Optical Characteristics

Photo sensor

CMOS linear sensor

Sensor Resolution

640X480 Pixels

Light source

625nm Red Bar LED

Performance Characteristics

Scan Rate

60FPS

Decode angle

Pitch angle:±50°

Skew angle::±50°

Tilt angle:±180°

Min resolution

0.076mm/3mil(PCS 0.9)

Min.PCS value

>30%UPC/EAN 13(13mil)

Curvature

R≥15 mm (EAN8),R≥20 mm (EAN13) (resolution=0.26mm,PCS=0.9)

Language

Multiple languages

Error rate

1/500W

Identification

1D: Code128,UCC/EAN-128,AIM128,EAN-8,EAN-13,ISBN/ISSN,UPC-E,UPC-A,Interleaved 2 of 5,ITF-6,ITF-4,Matrix 2 of 5,Industrial 2 of 5,Standard 2 of 5,Code39,Codabar,Code93,Code11,Plessey,MSI-Plessey,RSS-14,RSS-Limited,RSS-Expand

2D:QR ,PDF417 ,Data Matrix

Physical Characteristics

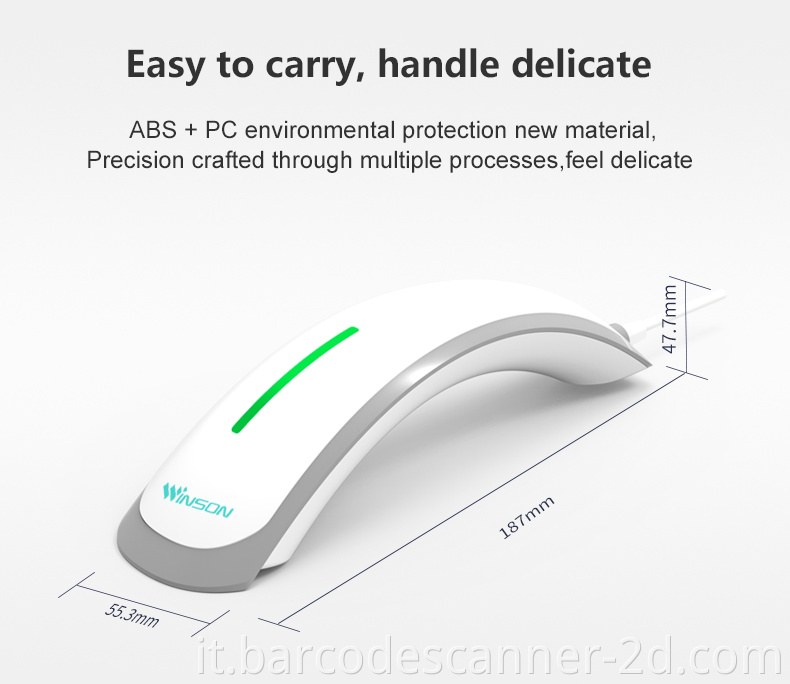

Dimensions

55.3mm×47.7mm×187mm(L x W x H)

Weight

120g

Environmental Characteristics

Temp

-20°-65°C / -4°to 149°F((operation) )   -30°- 70°C /-22°to 158°F(storage)

Humidity

5 - 90% (operation) ) 5 - 90% (storage)

Ambient Light

Fluorescent light 4000 lx max , direct sun light 80,000 lx max ,white light 4000 lx max

Shock drop test

1.5m drop onto concrete surface
